MICRO DETECTORSEncodersMV2/C0-0A MICRO DETECTORS Photoelectric sensor diffuse 100 mm plastic cable 2m axial

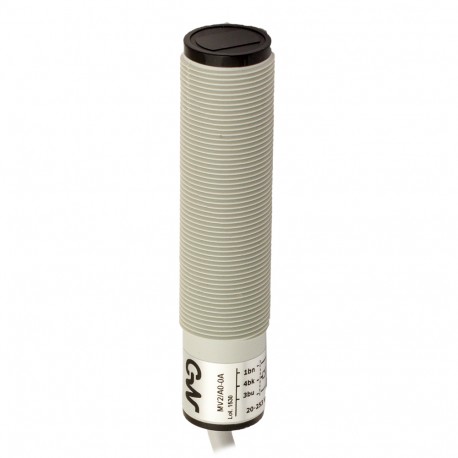

MICRO DETECTORS MV2/C0-0A MV2/C0-0A - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

MV2/C0-0A MICRO DETECTORS Photoelectric sensor diffuse 100 mm plastic cable 2m axial

Reference: MV2/C0-0A

Manufacturer: MICRO DETECTORS

Description:

Photoelectric sensor diffuse 100 mm plastic cable 2m axial
MV2/C0-0A Photoelectric sensor Diffuse 100 mm plast. cable 2m axial

Categories:

  • MICRO DETECTORS > Encoders

Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS

  • More Info
  • Reviews
Guarantee, repair and return.

Unit Price: 70,68 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 4-6 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Technical features

Nominal sensing distance100mm
Thermal drift of Sr≤10%Sr
Repeat Accuracy5%
Sensitivity adjustmentNo

Application

Function PrincipleDiffuse reflection
NotesWith 100x100mm white matt paper
Optic positionAxial

Outputs

Output typeTRIAC
Output FunctionNC
Switching frequency25Hz

Electrical data

Operating Voltage20…253Vac/50…60Hz
No-Load supply current≤30mARMS
Load current5…300mARMS
Leakage current6A
Output voltage drop≤3V IL=300mA
Max ripple content≤ 10%
LED indicatorsRed
Time delay before availability200ms
EmissionInfrared (880nm)
Interference to external light3.000lux (incandescent lamp), 10.000lux (sunlight)

Mechanical data

DimensionsM18x1/L=78,9mm
Weight100g
Housing MaterialPBT
ConnectionsCable 2m PVC
Active Head MaterialPMMA
Tightening torque1Nm
Operating temperature- 25°C…+ 70° C (without freeze)

Test/Approvals

ApprovalsCE, cRUus
EMC compatibilityEN 60947-5-2
Shocks and vibrationsVibration IEC 60068-2-6 / Shock IEC 60068-2-27
Degree of protectionIP67

Accessories

Supplied AccessoriesMetallic nut (2x)

Electrical diagrams of the connections


Dimension (mm)



Response curves

Dimensione Spot


Disassamento Parallelo


Eccesso di Guadagno


DATASHEET - PDF

Title
Size
Type
PDF CATALOGUE MICRODETECTORS EN
79 Mbytes
