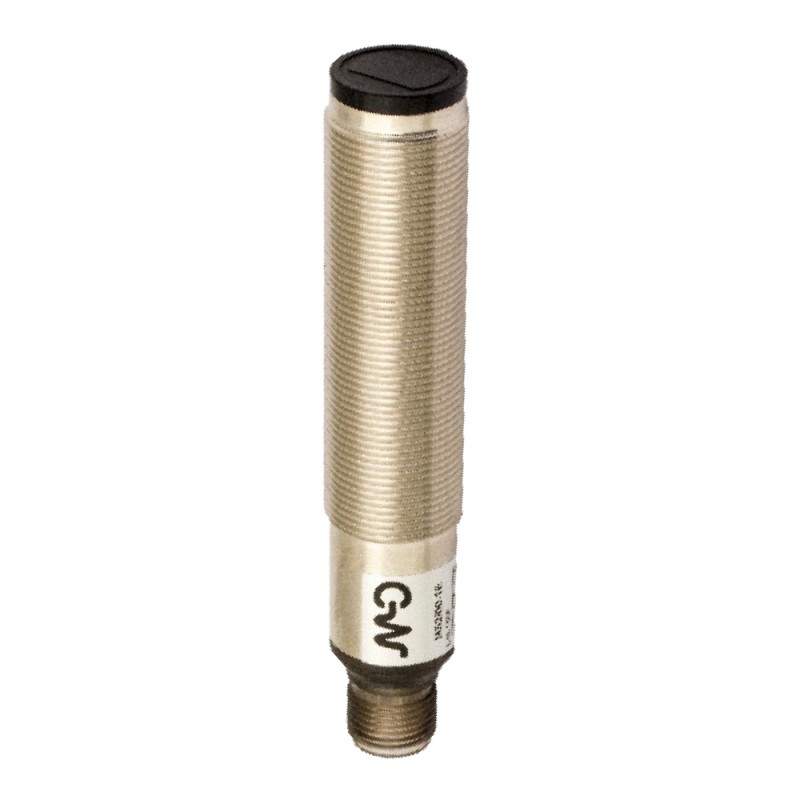

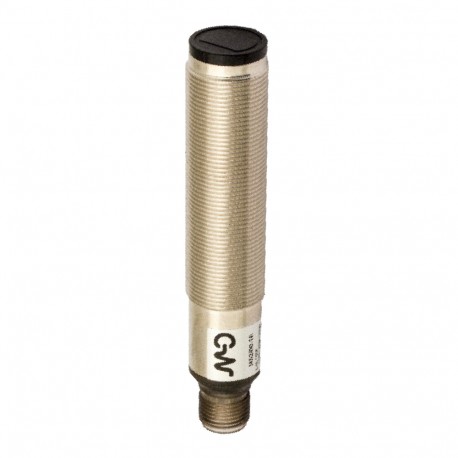

MST/00-1E MICRO DETECTORS Photoelectric sensor BGS focallization DECOUT metallic plug M12

Reference: MST/00-1E

Manufacturer: MICRO DETECTORS

Description:

Photoelectric sensor BGS focallization DECOUT metallic plug M12
MST/00-1E Photoelectric sensor BGS Focalizz.DECOUT met.conn.M12

Categories:

  • MICRO DETECTORS > Encoders

Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS

  • More Info
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

Technical features

Nominal sensing distance12mm…25mm white target 90% Kodak 100x100mm
Thermal drift of Sr≤10% Sr
Repeat Accuracy5%
Sensitivity adjustmentNo

Application

Function PrincipleBackground suppression
Optic positionAxial

Outputs

Output typeDECOUT (NPN, PNP)
Output FunctionNO, NC
Switching frequency1Khzz

Electrical data

Operating Voltage10-30Vdc
No-Load supply current≤30mA
Load current≤100mA
Leakage current≤10μA
Output voltage drop1,2V max. IL =100 mA
Max ripple content10%
LED indicatorsYellow (output state)
Time delay before availability≤200ms
Short-circuit protectionShort circuit (autoreset), Overvoltage
EmissionRed (660 nm)
Interference to external light3000lux (incandescent lamp), 10000lux (sunlight)
Impulsive Overvoltage ProtectionImpulsive Overvoltage Protection

Mechanical data

DimensionsM18 x 1 /L =93mm
Weight100g
Housing MaterialNickel plated brass
ConnectionsM12 4pin Plug
Active Head MaterialPMMA
Tightening torque25Nm
Operating temperature25°C..+ 70° C (Without freeze)

Test/Approvals

ApprovalsCE, cURus
EMC compatibilityEN 60947-5-2
Shocks and vibrationsVibration IEC 60068-2-6 / Shock IEC 60068-2-27
Degree of protectionIP67

Accessories

Supplied Accessoriesnuts M18 x 1

Electrical diagrams of the connections


Connector


Dimension (mm)



Response curves

Dimensione Spot con STF-12


Dimensione Spot con STF-25


Disassamento Parallelo con STF-12


Disassamento Parallelo con STF-25


Eccesso di Guadagno con STF-12


Eccesso di Guadagno con STF-25


DATASHEET - PDF

Title
Size
Type
