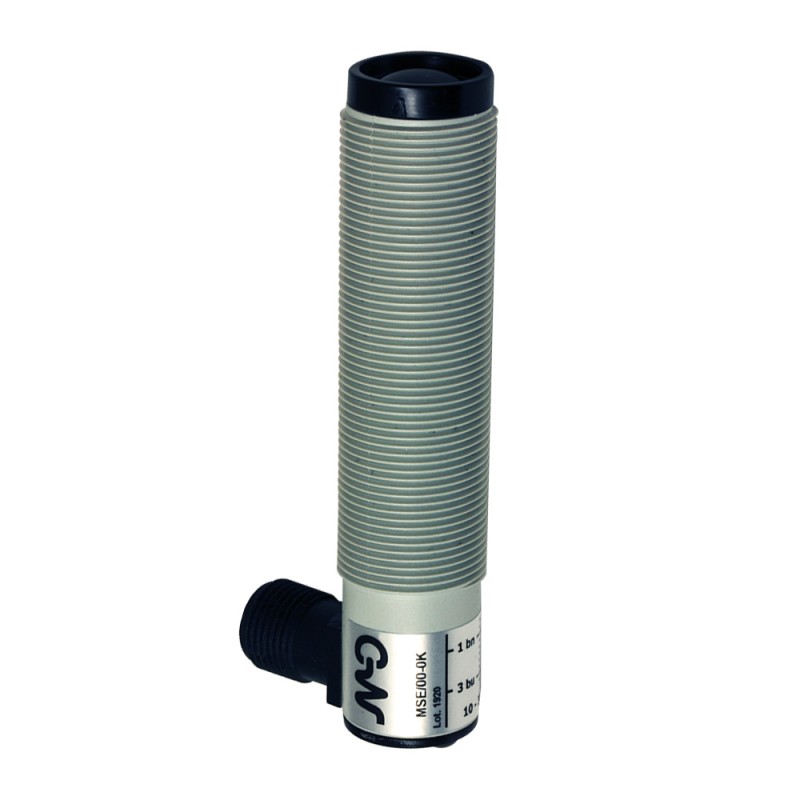

MSE/00-0K MICRO DETECTORS Photoelectric sensor Emitter plastic M12 plug M12 90°
MSE/00-0K
MICRO DETECTORS
Photoelectric sensor Emitter plastic M12 plug M12 90°
MSE/00-0K Photoelectric sensor Emitt. plast. M12 conn. M12 a 90°
Encoders
* Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
Best sellers
▲More info
▲Technical details
Discovery properties
| Nominal range | 16m (MSR), 32m (MSD) | |
| Thermal drift | ≤10% Sr | |
| Repeatability | 5% | |
| Sensitivity adjustment | Not | |
Applications
| Principle of operation | Barrier | |
| Transmitter/Receiver | Issuer | |
| Position lens | Axial | |
Electrical data
| Supply voltage | 10-30Vdc | |
| Absorption of current in the vacuum | ≤15mA | |
| Maximum residual ripple | 10% | |
| LED indicators | Yellow (power) | |
| Delay to the availability | ≤200ms | |
| Protection short circuit | Short circuit (auto reset), overvoltage | |
| Emission | Infrared (880 nm) | |
| Immunity to ambient light | 3000lux (incandescent lamp), 10000lux (sunlight) | |
| Protection against impulse overvoltage | Protection impulses surge | |
Mechanical data
| Dimensions | M18 x 1 /L =78,6 mm | |
| Weight | 30g | |
| body material | PBT | |
| Connections | Connector M12 4-pin 90° | |
| Material of the active surface | PMMA | |
| Tightening torque | 1Nm | |
| Operating temperature | 25°C..+ 70° C (without condensation) | |
Test/Certifications
| Certifications | CE cURus | |
| Electromagnetic compatibility | According to en 60947-5-2 | |
| Shock and vibration | Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 | |
| Degree of protection | IP67 | |
Accessories
| Accessories included | Nut M18 x 1 | |
Electrical wiring diagram of the connections
Connector
Dimension (mm)
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE MICRODETECTORS EN.pdf | 4 Mbytes |
|
| Download general catalog |
|
