MSC/00-1E
MICRO DETECTORS
1

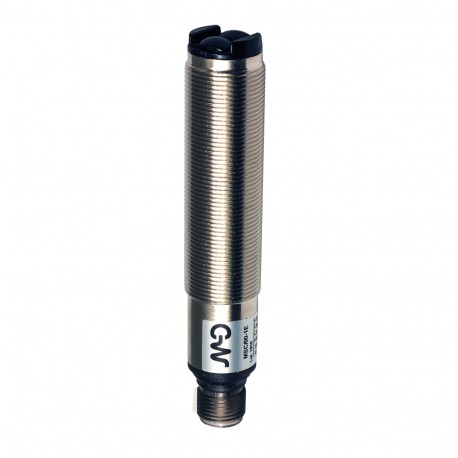

Photoelectric sensor Retroreflective 4 m metallic plug M12
MSC/00-1E Photoelectric sensor Retroreflective 4 m metal. conn. M12
Encoders
* Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Nominal sensing distance | 4,5m with reflector RL110 | |
Thermal drift of Sr | ≤10% Sr | |
Repeat Accuracy | 5% | |
Sensitivity adjustment | No |
Function Principle | Retro reflection | |
Optic position | Axial |
Output type | DECOUT (NPN, PNP) | |
Output Function | NO, NC | |
Switching frequency | 80Hz |
Operating Voltage | 10-30Vdc | |
No-Load supply current | ≤30mA | |
Load current | ≤100mA | |
Leakage current | ≤10μA | |
Output voltage drop | 1,2V max. IL =100 mA | |
Max ripple content | 10% | |
LED indicators | Yellow (output state) | |
Time delay before availability | ≤200ms | |
Short-circuit protection | Short circuit (autoreset), Overvoltage | |
Emission | Infrared (880 nm) | |
Interference to external light | 3000lux (incandescent lamp), 10000lux (sunlight) | |
Impulsive Overvoltage Protection | Impulsive Overvoltage Protection |
Dimensions | M18 x 1 /L =93mm | |
Weight | 100g | |
Housing Material | Nickel plated brass | |
Connections | M12 4pin Plug | |
Active Head Material | PMMA | |
Tightening torque | 25Nm | |
Operating temperature | 25°C..+ 70° C (Without freeze) |
Approvals | CE, cURus | |
EMC compatibility | EN 60947-5-2 | |
Shocks and vibrations | Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 | |
Degree of protection | IP67 |
Supplied Accessories | nuts M18 x 1 |
