MICRO DETECTORSEncodersMS4/00-0E MICRO DETECTORS Photoelectric sensor diffuse 200 mm plastic plug M12

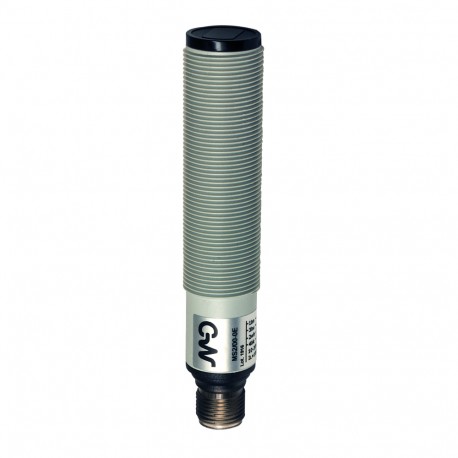

MICRO DETECTORS MS4/00-0E MS4/00-0E - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

MS4/00-0E MICRO DETECTORS Photoelectric sensor diffuse 200 mm plastic plug M12

Reference: MS4/00-0E

Manufacturer: MICRO DETECTORS

Description:

Photoelectric sensor diffuse 200 mm plastic plug M12
MS4/00-0E Photoelectric sensor Diffuse 200 mm plast. conn. M12

Categories:

  • MICRO DETECTORS > Encoders

Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS

  • More Info
  • Reviews
Guarantee, repair and return.

Unit Price: 74,68 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 4-6 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Technical features

Nominal sensing distance200mm white target 90% Kodak 200x200mm
Thermal drift of Sr≤10% Sr
Repeat Accuracy5%
Sensitivity adjustmentNo

Application

Function PrincipleDiffuse reflection
Optic positionAxial

Outputs

Output typeDECOUT (NPN, PNP)
Output FunctionNO, NC
Switching frequency80Hz

Electrical data

Operating Voltage10-30Vdc
No-Load supply current≤40mA
Load current≤100mA
Leakage current≤10μA
Output voltage drop1,2V max. IL =100 mA
Max ripple content10%
LED indicatorsYellow (output state)
Time delay before availability≤200ms
Short-circuit protectionShort circuit (autoreset), Overvoltage
EmissionInfrared (880 nm)
Interference to external light3000lux (incandescent lamp), 10000lux (sunlight)
Impulsive Overvoltage ProtectionImpulsive Overvoltage Protection

Mechanical data

DimensionsM18 x 1 /L =93mm
Weight30g
Housing MaterialPBT
ConnectionsM12 4pin Plug
Active Head MaterialPMMA
Tightening torque1Nm
Operating temperature25°C..+ 70° C (Without freeze)

Test/Approvals

ApprovalsCE, cURus
EMC compatibilityEN 60947-5-2
Shocks and vibrationsVibration IEC 60068-2-6 / Shock IEC 60068-2-27
Degree of protectionIP67

Accessories

Supplied Accessoriesnuts M18 x 1

Electrical diagrams of the connections


Connector


Dimension (mm)



Response curves

Dimensione Spot


Disassamento Parallelo


Eccesso di Guadagno
