MICRO DETECTORSEncodersMPE/00-0E MICRO DETECTORS Photoelectric sensor Emitter plastic plug M12
MICRO DETECTORS MPE/00-0E MPE/00-0E - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

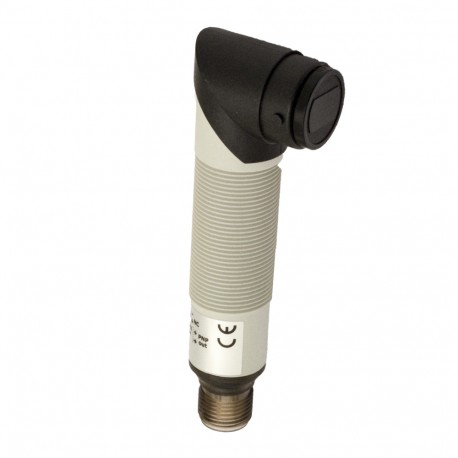

MPE/00-0E MICRO DETECTORS Photoelectric sensor Emitter plastic plug M12

Reference: MPE/00-0E

Manufacturer: MICRO DETECTORS

Description:

Photoelectric sensor Emitter plastic plug M12
MPE/00-0E Photoelectric sensor Emitt. plastic conn. M12

Categories:

  • MICRO DETECTORS > Encoders

Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS

  • More Info
  • Reviews
Guarantee, repair and return.

Unit Price: 69,11 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 4-6 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Technical features

Nominal sensing distance16m (MPR), 32m (MPD)
Thermal drift of Sr≤10% Sr
Repeat Accuracy5%
Sensitivity adjustmentNo

Application

Function PrincipleThrough beam
Emitter/ReceiverEmitter
Optic positionRight angle 90°

Electrical data

Operating Voltage10-30Vdc
No-Load supply current≤15mA
Max ripple content10%
LED indicatorsYellow (power ON)
Time delay before availability≤200ms
Short-circuit protectionShort circuit (autoreset), Overvoltage
EmissionInfrared (880 nm)
Interference to external light3000lux (incandescent lamp), 10000lux (sunlight)
Impulsive Overvoltage ProtectionImpulsive Overvoltage Protection

Mechanical data

DimensionsM18 x 1 /L =88,8 x 29,7mm
Weight30g
Housing MaterialPBT
ConnectionsM12 4pin Plug
Active Head MaterialPMMA
Tightening torque1Nm
Operating temperature25°C..+ 70° C (Without freeze)

Test/Approvals

ApprovalsCE cURus
EMC compatibilityEN 60947-5-2
Shocks and vibrationsVibration IEC 60068-2-6 / Shock IEC 60068-2-27
Degree of protectionIP67

Accessories

Supplied Accessoriesnuts M18 x 1

Electrical diagrams of the connections


Connector


Dimension (mm)



DATASHEET - PDF

Title
Size
Type
PDF CATALOGUE MICRODETECTORS EN
79 Mbytes
