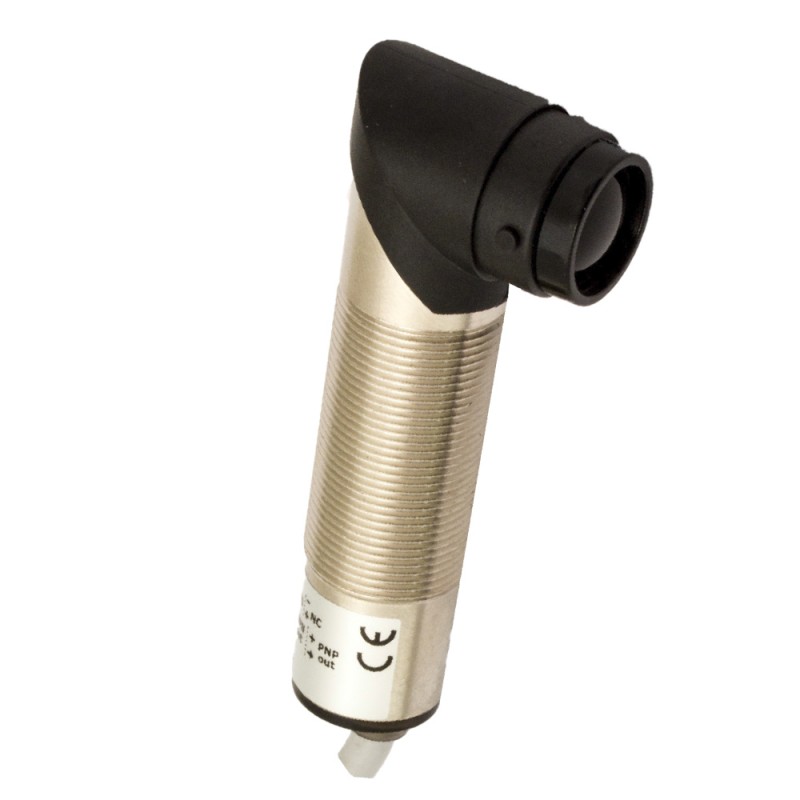

MP1/00-1A MICRO DETECTORS Photoelectric sensor BGS 100 mm metallic cable 2m axial
MP1/00-1A
MICRO DETECTORS
Photoelectric sensor BGS 100 mm metallic cable 2m axial
MP1/00-1A Photoelectric sensor BGS 100 mm metal. cable 2m axial
Encoders
* Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
Best sellers
▲More info
▲Technical features
| Nominal sensing distance | 100mm white target 90% Kodak 100x100mm | |
| Thermal drift of Sr | ≤10% Sr | |
| Repeat Accuracy | 5% | |
| Sensitivity adjustment | No | |
Application
| Function Principle | Background suppression | |
| Optic position | Right angle 90° | |
Outputs
| Output type | DECOUT (NPN, PNP) | |
| Output Function | NO, NC | |
| Switching frequency | 1Khzz | |
Electrical data
| Operating Voltage | 10-30Vdc | |
| No-Load supply current | ≤40mA | |
| Load current | ≤100mA | |
| Leakage current | ≤10μA | |
| Output voltage drop | 1,2V max. IL =100 mA | |
| Max ripple content | 10% | |
| LED indicators | Yellow (output state) | |
| Time delay before availability | ≤200ms | |
| Short-circuit protection | Short circuit (autoreset), Overvoltage | |
| Emission | Infrared (880 nm) | |
| Interference to external light | 3000lux (incandescent lamp), 10000lux (sunlight) | |
| Impulsive Overvoltage Protection | Impulsive Overvoltage Protection | |
Mechanical data
| Dimensions | M18 x 1 /L =74,7 x 29,7mm | |
| Weight | 130g | |
| Housing Material | Nickel plated brass | |
| Connections | 2m PVC cable | |
| Active Head Material | PMMA | |
| Tightening torque | 25Nm | |
| Operating temperature | 25°C..+ 70° C (Without freeze) | |
Test/Approvals
| Approvals | CE cURus | |
| EMC compatibility | EN 60947-5-2 | |
| Shocks and vibrations | Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 | |
| Degree of protection | IP67 | |
Accessories
| Supplied Accessories | nuts M18 x 1 | |
Electrical diagrams of the connections
Dimension (mm)
Response curves
Dimensione Spot
Disassamento Parallelo
Eccesso di Guadagno
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE MICRODETECTORS EN.pdf | 4 Mbytes |
|
| Download general catalog |
|
