MDI63G 189 MDI63G128S5/30P10SXPR MICRO DETECTORS Incremental Encoder Hollow Shaft 63mm, Flange G, Resolution..
MDI63G 189
MDI63G128S5/30P10SXPR
MICRO DETECTORS

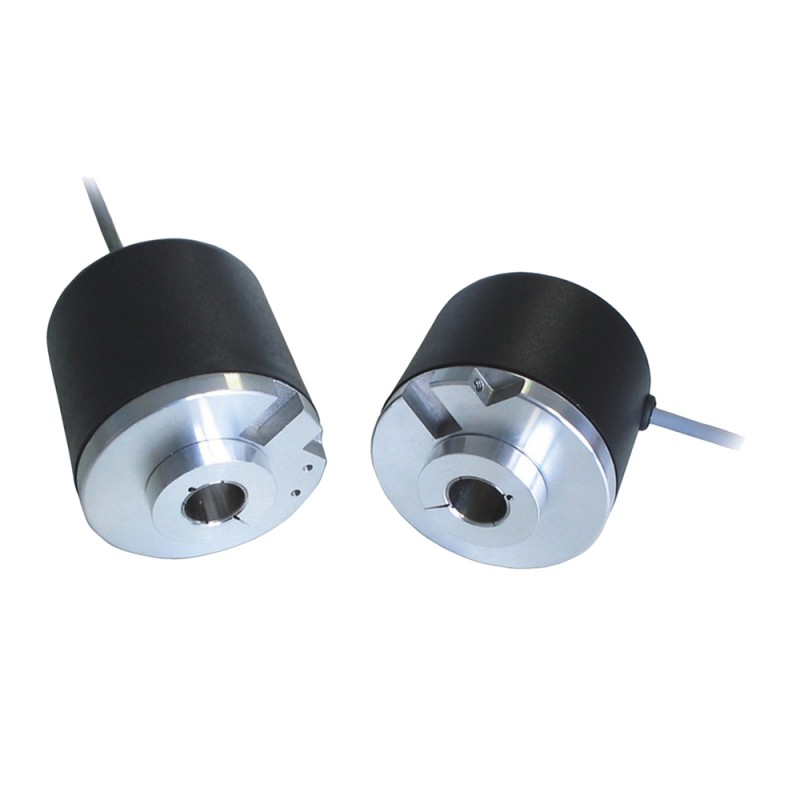

Incremental Encoder Hollow Shaft 63mm, Flange G, Resolution 128 ppm, Without Zero Pulse, Push-Pull, Shaft 10mm, IP66, Radial Cable 1,5 mt Exit
MDI63G128S5/30P10SXPR - Hollow Shaft 63mm, Flange G, Res. 128 ppm, Without Zero Pulse, Push-Pull, Shaft 10mm, IP66, Radial Cable 1,5 mt Exit
Sensors
* Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
Best sellers
▲More info
▲MDI 58 F / G - 63 F / G series
Hollow shaft encoder series for industrial applications with high mechanical resistance requirements.
Features:
- 3 channel encoder (A / B / Z) up to 2500 ppr
- Power supply up to +30 VDC with several electronic outputs available
- Up to 220 kHz output frequency
- Cable or connector output
- Blind hollow shaft diameter up to 15 mm
- Mounting by stator coupling, spring or anti-rotation pin
Datasheet - PDF
