MDI63D 368
MDI63D1600Z5/30L10XXPR
MICRO DETECTORS
1

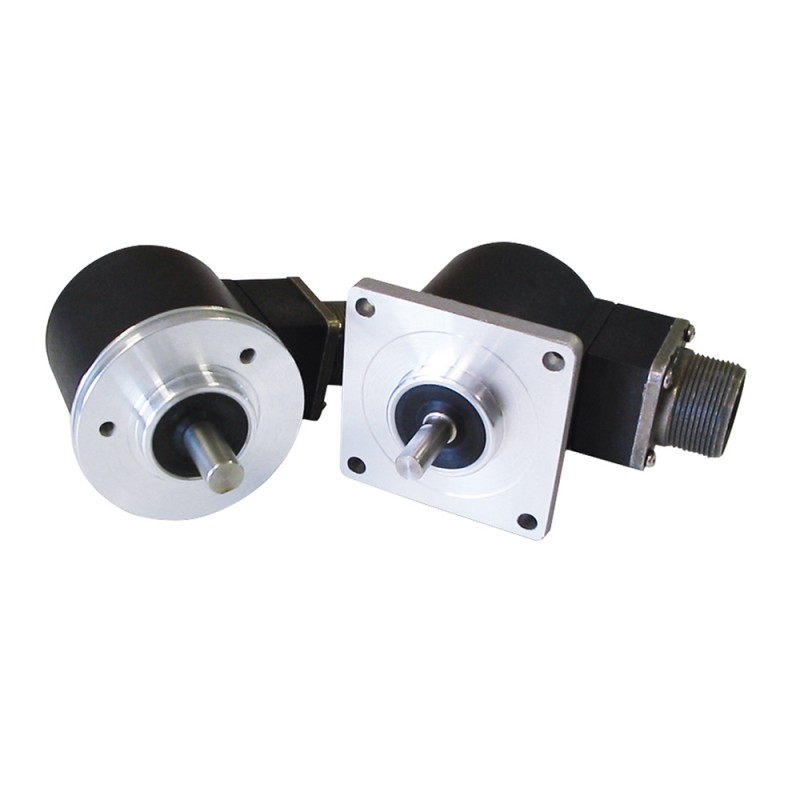

Incremental Encoder Solid Shaft 63mm, Flange D, Resolution 1600 ppm, With Zero Pulse, Line Driver, Shaft 10mm, IP54, Radial Cable 1,5 mt Exit
MDI63D1600Z5/30L10XXPR - Solid Shaft 63mm, Flange D, Res. 1600 ppm, With Zero Pulse, Line Driver, Shaft 10mm, IP54, Radial Cable 1,5 mt Exit
Sensors
* Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Resolution | da 100 a 2500 ppr | |
counting direction | A leads B clockwise (shaft view) |
max output frequency | 220 kHz |
Output type | push-pull / line driver |
Operating Voltage | 5/30 = 4,5 ... 30 V DC (reverse polarity protection) | |
No-Load supply current | 800 mW | |
max load current | 20 mA / channel |
Weight | 350 g (12,35 oz) | |
Housing Material | PA66 glass fiber reinforced | |
Operating temperature | -25° ... +85°C (-13° ... +185°F) | |
Storage temperature | -25° ... +70°C (-13° ... +158°F) | |
max shaft load | 200 N | |
Shaft diameter | ø 9,52 (3/8”) / 10 mm | |
max rotation speed | 6000 rpm (IP54) 3000 rpm / 70° C - 2000 rpm / 85° C (IP66) | |
moment of inertia | 1,5 x 10-6 kgm2 | |
starting torque at 20°c | < 0,02 Nm (IP 54) < 0,06 Nm (IP 66) | |
shaft material | 1.4305 / AISI 303 stainless steel | |
bearings | 2 ball bearings | |
bearings life | 109 revolutions |
EMC compatibility | IEC 61000-6-2 IEC 61000-6-4 | |
Shocks and vibrations | 10 G, 10 ... 2000 Hz (IEC 60068-2-6) | |
Degree of protection | X = IP 54 (IEC 60529) S = IP 66 (IEC 60529) |
Title: | Size: | Type: |
---|---|---|
PDF CATALOGUE MICRODETECTORS EN.pdf | 4 Mbytes | |
Download general catalog |
