> MICRO DETECTORS>Sensors>MDI63A 773 MDI63A2000S5/30L9XXPA MICRO DETECTORS Incremental Encoder Solid Shaft 63mm, Flange A, Resolution ..
Previous Product Next Product

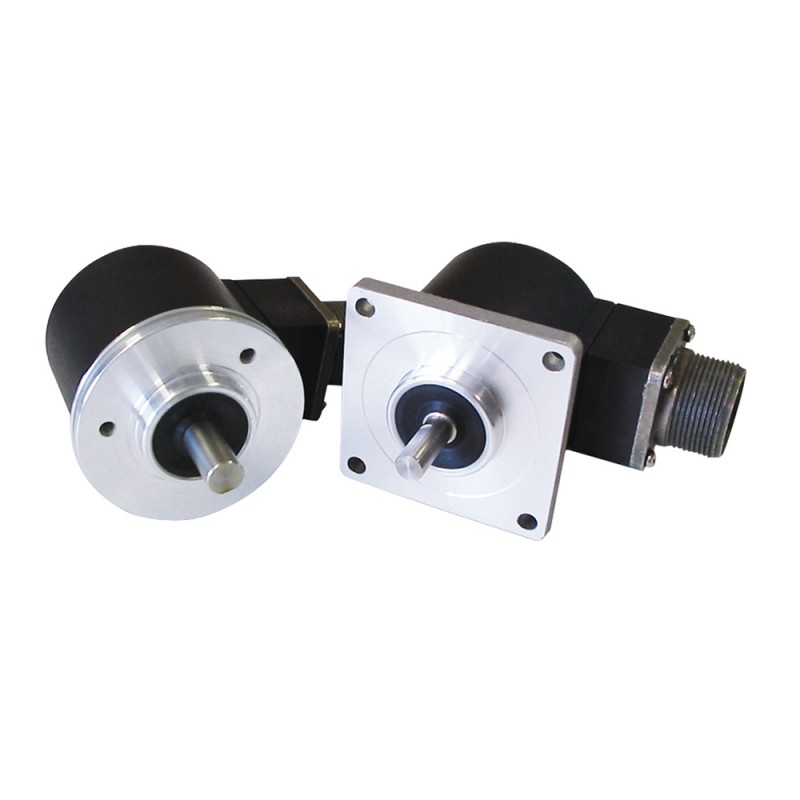

MDI63A 773 MDI63A2000S5/30L9XXPA MICRO DETECTORS Incremental Encoder Solid Shaft 63mm, Flange A, Resolution .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

MDI63A 773 MDI63A2000S5/30L9XXPA MICRO DETECTORS Incremental Encoder Solid Shaft 63mm, Flange A, Resolution ..

MDI63A 773

MDI63A2000S5/30L9XXPA

MICRO DETECTORS

Incremental Encoder Solid Shaft 63mm, Flange A, Resolution 2000 ppm, Without Zero Pulse, Line Driver, Shaft 9mm, IP54, Axial Cable 1,5 mt Exit

MDI63A2000S5/30L9XXPA - Solid Shaft 63mm, Flange A, Res. 2000 ppm, Without Zero Pulse, Line Driver, Shaft 9mm, IP54, Axial Cable 1,5 mt Exit

More details


Sensors

* Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS

Total price: $178.16
Unit price: $178.16

Quantity Price
1+$178.16
2+$154.81
3+$152.61
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

More info

▲


MDI 63 A / D series

Standard ø 63 mm encoder series for industrial applications with high mechanical resistance requirements

Features:

  • 3 channel encoder (A / B / Z) up to 2500 ppr
  • Power supply up to +30 VDC with several electronic outputs available
  • Up to 220 kHz output frequency
  • Cable or connector output
  • Solid shaft diameter up to 10 mm
  • Mounting by synchronous or centering 2,5” square flange

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE MICRODETECTORS EN.pdf 4 Mbytes
Download general catalog Download general catalog
