MICRO DETECTORSSensorsMDI63A 60 MDI63A2000Z5/30P9XXPR MICRO DETECTORS Incremental Encoder Solid Shaft 63mm, Flange A, Resolution 2..
MICRO DETECTORS MDI63A 60 MDI63A 60 MDI63A2000Z5/30P9XXPR - Image 1

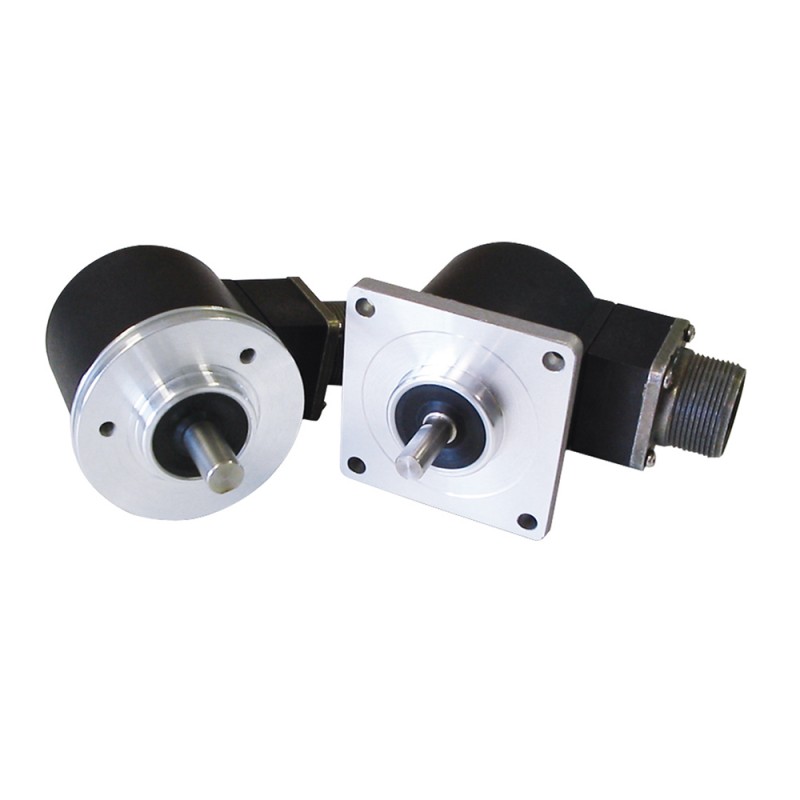

Images are for illustrative purposes only. Please refer to data sheet for details.

MDI63A 60 MDI63A2000Z5/30P9XXPR MICRO DETECTORS Incremental Encoder Solid Shaft 63mm, Flange A, Resolution 2..

Reference: MDI63A 60

Catalog Number: MDI63A2000Z5/30P9XXPR

Manufacturer: MICRO DETECTORS

Description:

Incremental Encoder Solid Shaft 63mm, Flange A, Resolution 2000 ppm, With Zero Pulse, Push-Pull, Shaft 9mm, IP54, Radial Cable 1,5 mt Exit
MDI63A2000Z5/30P9XXPR - Solid Shaft 63mm, Flange A, Res. 2000 ppm, With Zero Pulse, Push-Pull, Shaft 9mm, IP54, Radial Cable 1,5 mt Exit

Categories:

  • MICRO DETECTORS > Sensors

Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS

  • More Info
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

MORE INFO

Technical features

Resolutionda 100 a 2500 ppr
counting directionA leads B clockwise (shaft view)

Application

max output frequency220 kHz

Outputs

Output typepush-pull / line driver

Electrical data

Operating Voltage5/30 = 4,5 ... 30 V DC (reverse polarity protection)
No-Load supply current800 mW
max load current20 mA / channel

Mechanical data

Weight350 g (12,35 oz)
Housing MaterialPA66 glass fiber reinforced
Operating temperature-25° ... +85°C (-13° ... +185°F)
Storage temperature-25° ... +70°C (-13° ... +158°F)
max shaft load200 N
Shaft diameterø 9,52 (3/8”) / 10 mm
max rotation speed6000 rpm (IP54) 3000 rpm / 70° C - 2000 rpm / 85° C (IP66)
moment of inertia1,5 x 10-6 kgm2
starting torque at 20°c< 0,02 Nm (IP 54) < 0,06 Nm (IP 66)
shaft material1.4305 / AISI 303 stainless steel
bearings2 ball bearings
bearings life109 revolutions

Test/Approvals

EMC compatibilityIEC 61000-6-2 IEC 61000-6-4
Shocks and vibrations10 G, 10 ... 2000 Hz (IEC 60068-2-6)
Degree of protectionX = IP 54 (IEC 60529) S = IP 66 (IEC 60529)

Dimension (mm)



DATASHEET - PDF

Title
Size
Type
PDF CATALOGUE MICRODETECTORS EN
79 Mbytes
