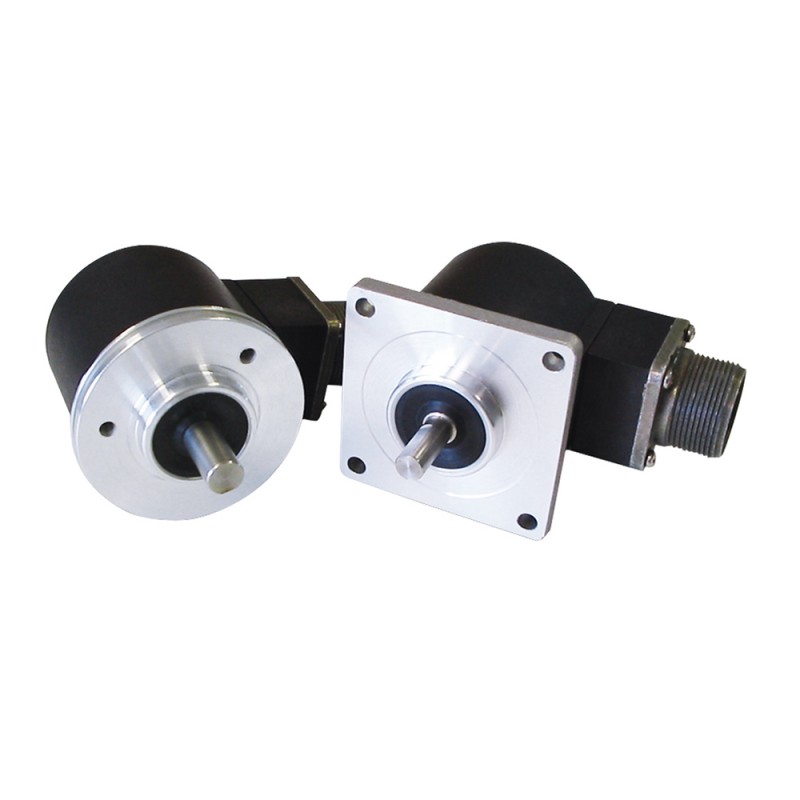

MDI63A 2629 MDI63A1440S5/30P9SXM12A.162 MICRO DETECTORS Incremental Encoder Solid Shaft 63mm, Flange A, Reso.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

MDI63A 2629 MDI63A1440S5/30P9SXM12A.162 MICRO DETECTORS Incremental Encoder Solid Shaft 63mm, Flange A, Reso..

MDI63A 2629

MDI63A1440S5/30P9SXM12A.162

MICRO DETECTORS

Incremental Encoder Solid Shaft 63mm, Flange A, Resolution 1440 ppm, Without Zero Pulse, Push-Pull, Shaft 9mm, IP66, Axial M12 Connector Exit

MDI63A1440S5/30P9SXM12A.162 - Solid Shaft 63mm, Flange A, Res. 1440 ppm, Without Zero Pulse, Push-Pull, Shaft 9mm, IP66, Axial M12 Connector Exit

More details


Sensors

* Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS

Total price: $210.32
Unit price: $210.32

Quantity Price
1+$210.32
2+$188.93
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Dettagli tecnici

Proprietà di rilevamento

Risoluzioneda 100 a 2500 ppr
Direzione di conteggioA in anticipo su B con rotazione in senso orario (vista lato albero)

Applicazione

Massima frequenza di utilizzo220 kHz

Uscite

Tipo di uscitapush-pull / line driver

Dati elettrici

Tensione di alimentazione5/30 = 4,5 ... 30 V DC (con protezione inversione)
Assorbimento a vuoto800 mW
Massima corrente di carico20 mA per canale

Dati meccanici

Peso350 g
Materiale corpoalluminio EN-AW 2011
Temperatura operativa-25° ... +85°C
Temperatura di stoccaggio-25° ... +70°C
Carichi ammessi sull'albero200 N
Diametro alberoø 9,52 (3/8”) / 10 mm
Massima velocità di rotazione6000 rpm (IP54) 3000 rpm / 70° C - 2000 rpm / 85° C (IP66)
Momento d’inerzia1,5 x 10-6 kgm2
Coppia di spunto a 20°C< 0,02 Nm (IP 54) < 0,06 Nm (IP 66)
Materiale alberoacciaio inox 1.4305 / AISI 303
Cuscinetti2 cuscinetti a sfera
Vita cuscinetti109 rivoluzioni

Test/Certificazioni

Compatibilità elettromagneticaIEC 61000-6-2 IEC 61000-6-4
Urti e vibrazioni50 G, 11 ms (IEC 60068-2-27) - 10 G, 10 ... 2000 Hz (IEC 60068-2-6)
Grado di ProtezioneX = IP 54 (IEC 60529) S = IP 66 (IEC 60529)

Dimensioni (mm)
