MDI63A 2554 MDI63A480S5/30P10XXM12A.162 MICRO DETECTORS Incremental Encoder Solid Shaft 63mm, Flange A, Reso..
MDI63A 2554
MDI63A480S5/30P10XXM12A.162
MICRO DETECTORS

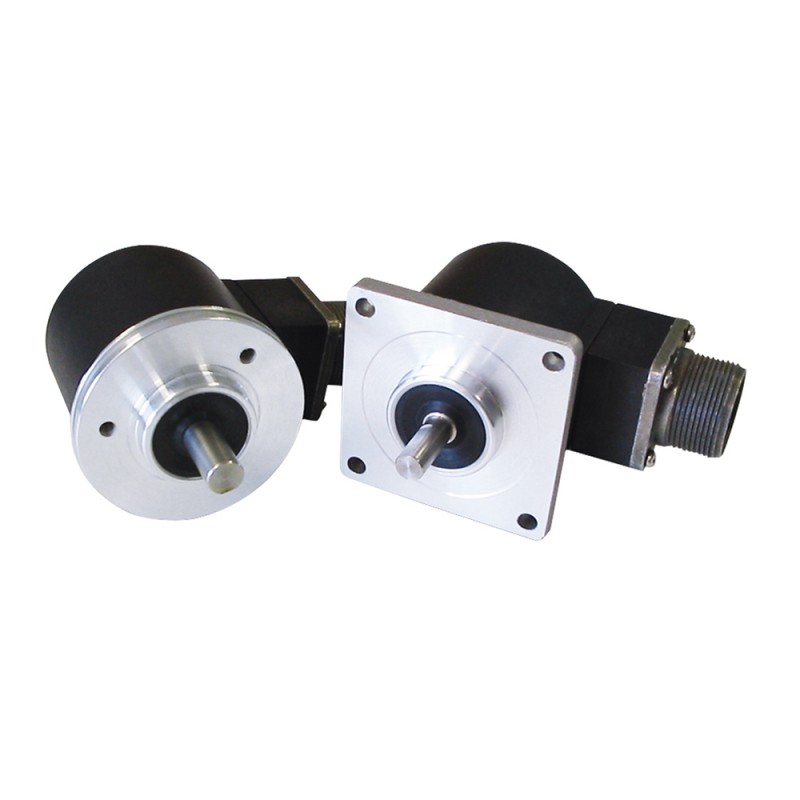

Incremental Encoder Solid Shaft 63mm, Flange A, Resolution 480 ppm, Without Zero Pulse, Push-Pull, Shaft 10mm, IP54, Axial M12 Connector Exit
MDI63A480S5/30P10XXM12A.162 - Solid Shaft 63mm, Flange A, Res. 480 ppm, Without Zero Pulse, Push-Pull, Shaft 10mm, IP54, Axial M12 Connector Exit
Sensors
* Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
More info
▲Technical features
| Resolution | da 100 a 2500 ppr | |
| counting direction | A leads B clockwise (shaft view) | |
Application
| max output frequency | 220 kHz | |
Outputs
| Output type | push-pull / line driver | |
Electrical data
| Operating Voltage | 5/30 = 4,5 ... 30 V DC (reverse polarity protection) | |
| No-Load supply current | 800 mW | |
| max load current | 20 mA / channel | |
Mechanical data
| Weight | 350 g (12,35 oz) | |
| Housing Material | PA66 glass fiber reinforced | |
| Operating temperature | -25° ... +85°C (-13° ... +185°F) | |
| Storage temperature | -25° ... +70°C (-13° ... +158°F) | |
| max shaft load | 200 N | |
| Shaft diameter | ø 9,52 (3/8”) / 10 mm | |
| max rotation speed | 6000 rpm (IP54) 3000 rpm / 70° C - 2000 rpm / 85° C (IP66) | |
| moment of inertia | 1,5 x 10-6 kgm2 | |
| starting torque at 20°c | < 0,02 Nm (IP 54) < 0,06 Nm (IP 66) | |
| shaft material | 1.4305 / AISI 303 stainless steel | |
| bearings | 2 ball bearings | |
| bearings life | 109 revolutions | |
Test/Approvals
| EMC compatibility | IEC 61000-6-2 IEC 61000-6-4 | |
| Shocks and vibrations | 10 G, 10 ... 2000 Hz (IEC 60068-2-6) | |
| Degree of protection | X = IP 54 (IEC 60529) S = IP 66 (IEC 60529) | |
Dimension (mm)
Datasheet - PDF
▲| Title: | Type: | |
|---|---|---|
| Download general catalog |
|
