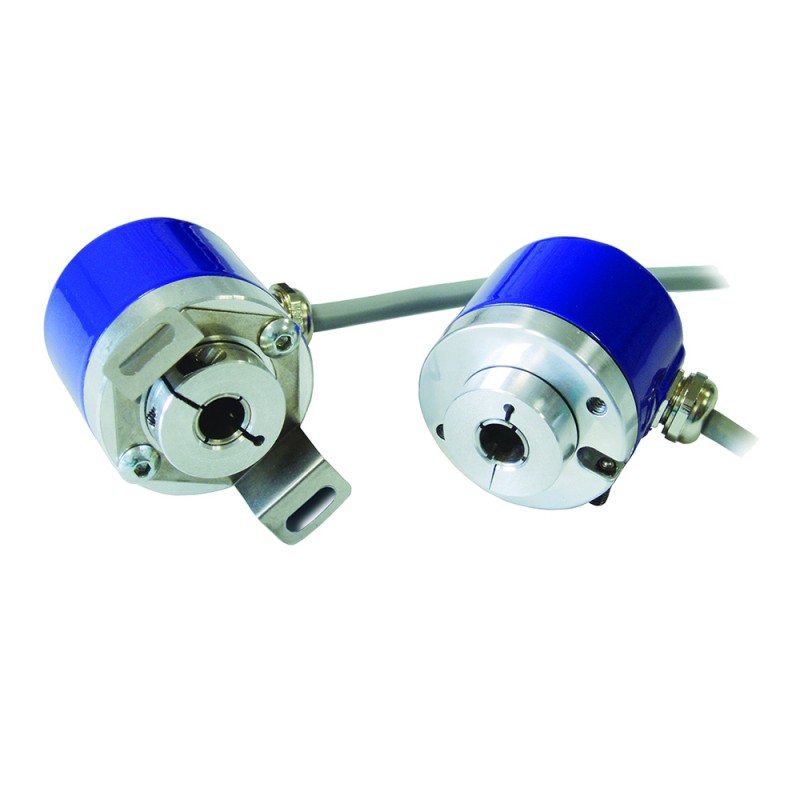

MDI58C 733 MDI58C900Z5/30P10SXPA MICRO DETECTORS Incremental Encoder Solid Shaft 58mm, Flange C, Resolution ..
MDI58C 733
MDI58C900Z5/30P10SXPA
MICRO DETECTORS
Incremental Encoder Solid Shaft 58mm, Flange C, Resolution 900 ppm, With Zero Pulse, Push-Pull, Shaft 10mm, IP66, Axial Cable 1,5 mt Exit
MDI58C900Z5/30P10SXPA - Solid Shaft 58mm, Flange C, Res. 900 ppm, With Zero Pulse, Push-Pull, Shaft 10mm, IP66, Axial Cable 1,5 mt Exit
Sensors
* Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
More info
▲Technical features
| Resolution | da 100 a 2500 ppr | |
| counting direction | A leads B clockwise (shaft view) | |
Application
| max output frequency | 220 kHz | |
Outputs
| Output type | push-pull / line driver | |
Electrical data
| Operating Voltage | 5/30 = 4,5 ... 30 V DC (reverse polarity protection) | |
| No-Load supply current | 800 mW | |
| max load current | 20 mA / channel | |
Mechanical data
| Weight | 150 g | |
| Housing Material | PA66 glass fiber reinforced | |
| Operating temperature | -20° ... +70°C | |
| Storage temperature | -25° ... +70°C | |
| max shaft load | 5 N assiale / radiale | |
| Shaft diameter | ø 6* / 8* / 10 mm | |
| max rotation speed | 3000 rpm | |
| moment of inertia | 0,8 x 10-6 kgm2 | |
| starting torque at 20°c | < 0,01 Nm (IP 64) < 0,06 Nm (IP 65) | |
| shaft material | 1.4305 / AISI 303 stainless steel | |
| bearings | 2 ball bearings | |
| bearings life | 109 revolutions | |
Test/Approvals
| EMC compatibility | IEC 61000-6-2 IEC 61000-6-4 | |
| Shocks and vibrations | 10 G, 10 ... 2000 Hz (IEC 60068-2-6) | |
| Degree of protection | IP 64 (IEC 60529) IP 65 (IEC 60529) | |
Dimension (mm)
Datasheet - PDF
