MICRO DETECTORSSensorsMDI58B 215 MDI58B2000S5/30P10SXPR MICRO DETECTORS Incremental Encoder Solid Shaft 58mm, Flange B, Resolution..

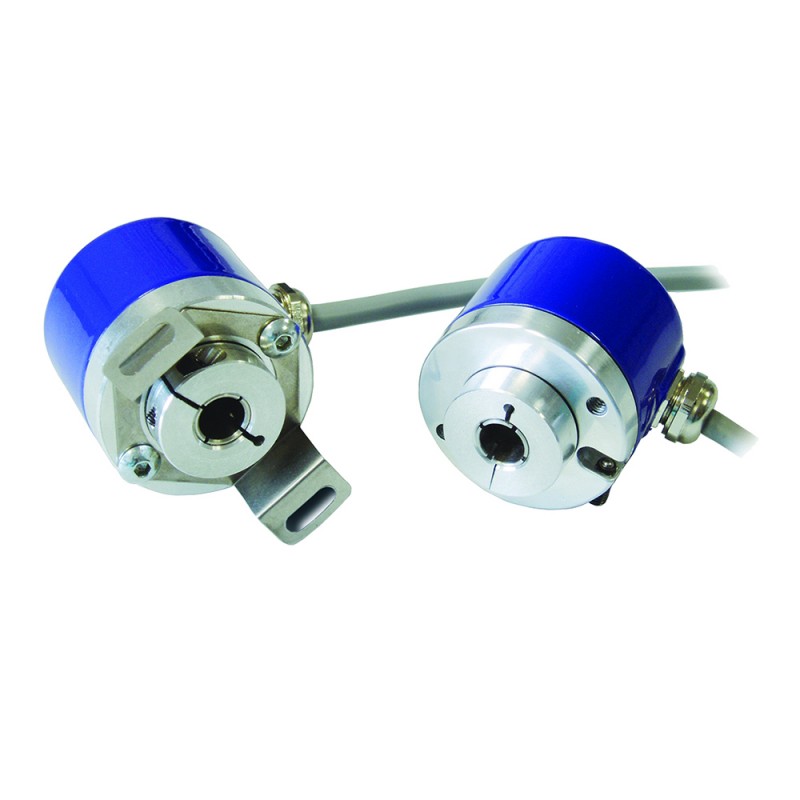

MICRO DETECTORS MDI58B 215 MDI58B 215 MDI58B2000S5/30P10SXPR - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

MDI58B 215 MDI58B2000S5/30P10SXPR MICRO DETECTORS Incremental Encoder Solid Shaft 58mm, Flange B, Resolution..

Reference: MDI58B 215

Catalog Number: MDI58B2000S5/30P10SXPR

Manufacturer: MICRO DETECTORS

Description:

Incremental Encoder Solid Shaft 58mm, Flange B, Resolution 2000 ppm, Without Zero Pulse, Push-Pull, Shaft 10mm, IP66, Radial Cable 1,5 mt Exit
MDI58B2000S5/30P10SXPR - Solid Shaft 58mm, Flange B, Res. 2000 ppm, Without Zero Pulse, Push-Pull, Shaft 10mm, IP66, Radial Cable 1,5 mt Exit

Categories:

  • MICRO DETECTORS > Sensors

Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS

  • More Info
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

MORE INFO

MDI 58 B / C series

Standard Ø 58 mm encoder series for industrial applications with high mechanical resistance

Requirements:

  • 3 channel encoder (A / B / Z) up to 2500 ppr
  • Power supply up to +30 VDC with several electronic outputs available
  • Up to 220 kHz output frequency
  • Cable or connector output
  • Solid shaft diameter up to 10 mm
  • Mounting by synchronous, clamping flange

DATASHEET - PDF

Title
Size
Type
PDF CATALOGUE MICRODETECTORS EN
79 Mbytes
