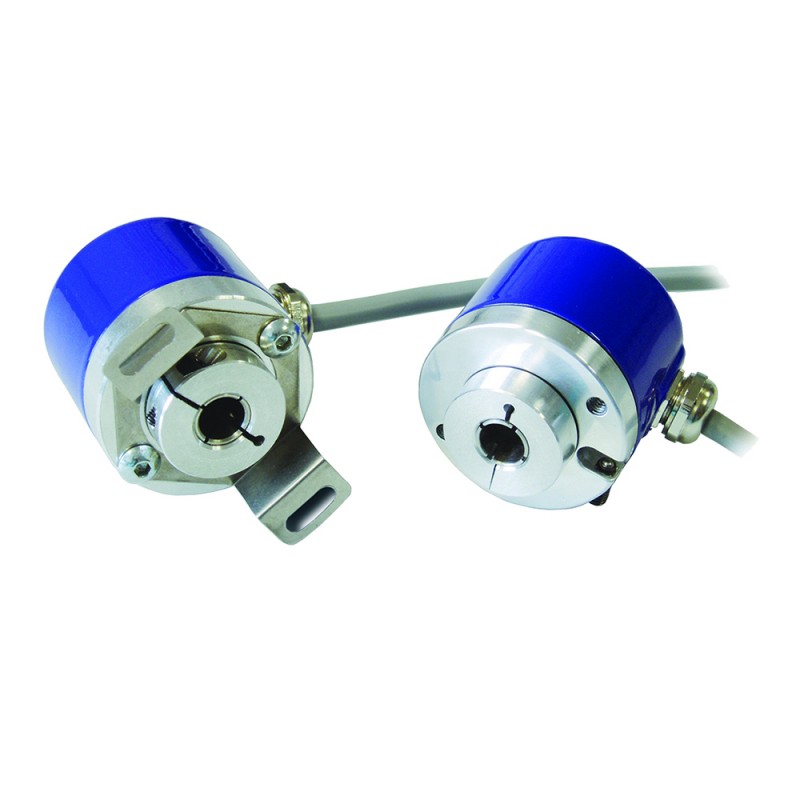

MDI58B 1488 MDI58B2500Z5/30L10SXMR.162.162 MICRO DETECTORS Incremental Encoder Solid Shaft 58mm, Flange B, R..

Reference: MDI58B 1488

Catalog Number: MDI58B2500Z5/30L10SXMR.162.162

Manufacturer: MICRO DETECTORS

Description:

Incremental Encoder Solid Shaft 58mm, Flange B, Resolution 2500 ppm, With Zero Pulse, Line Driver, Shaft 10mm, IP66, Radial MIL Connector Exit
MDI58B2500Z5/30L10SXMR.162 - Solid Shaft 58mm, Flange B, Res. 2500 ppm, With Zero Pulse, Line Driver, Shaft 10mm, IP66, Radial MIL Connector Exit

Categories:

  • MICRO DETECTORS > Sensors

Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS

  • More Info
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
