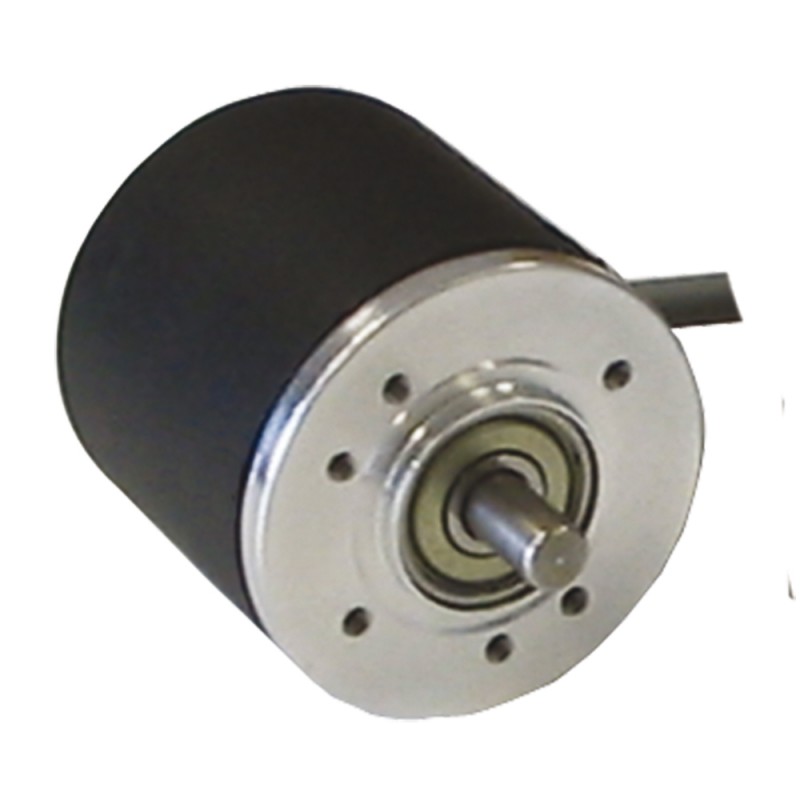

MDI40A 15 MDI40A600S5/30P6XXPR MICRO DETECTORS Incremental Encoder Solid Shaft 40mm, Flange A, Resolution 60..
MDI40A 15
MDI40A600S5/30P6XXPR
MICRO DETECTORS
Incremental Encoder Solid Shaft 40mm, Flange A, Resolution 600 ppm, Without Zero Pulse, Push-Pull, IP54, Radial Cable 0,5 mt Exit
MDI40A600S5/30P6XXPR - Solid Shaft 40mm, Flange A, Res. 600 ppm, Without Zero Pulse, Push-Pull, IP54, Radial Cable 0,5 mt Exit
Sensors
* Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
More info
▲Technical features
| Resolution | da 100 a 2500 ppr | |
| counting direction | A leads B clockwise (shaft view) | |
Application
| max output frequency | 220 kHz | |
Outputs
| Output type | push-pull / line driver | |
Electrical data
| Operating Voltage | 5/30 = 4,5 ... 30 V DC (reverse polarity protection) | |
| No-Load supply current | 800 mW | |
| max load current | 20 mA / channel | |
Mechanical data
| Weight | 100 g (3,52 oz) | |
| Housing Material | PA66 glass fiber reinforced | |
| Operating temperature | -25° ... +85°C (-13° ... +185°F) | |
| Storage temperature | -25° ... +70°C (-13° ... +158°F) | |
| max shaft load | 5 N axial / radial | |
| Shaft diameter | ø 6 mm | |
| max rotation speed | 3000 rpm (IP 66) 6000 rpm (IP 54) | |
| moment of inertia | 0,1 x 10-6 kgm2 | |
| starting torque at 20°c | < 0,01 Nm (IP 54) < 0,05 Nm (IP 66) | |
| shaft material | 1.4305 / AISI 303 stainless steel | |
| bearings | 2 ball bearings | |
| bearings life | 109 revolutions | |
Test/Approvals
| EMC compatibility | IEC 61000-6-2 IEC 61000-6-4 | |
| Shocks and vibrations | 10 G, 10 ... 2000 Hz (IEC 60068-2-6) | |
| Degree of protection | X = IP 54 (IEC 60529) S = IP 66 (IEC 60529) | |
Dimension (mm)
Datasheet - PDF
