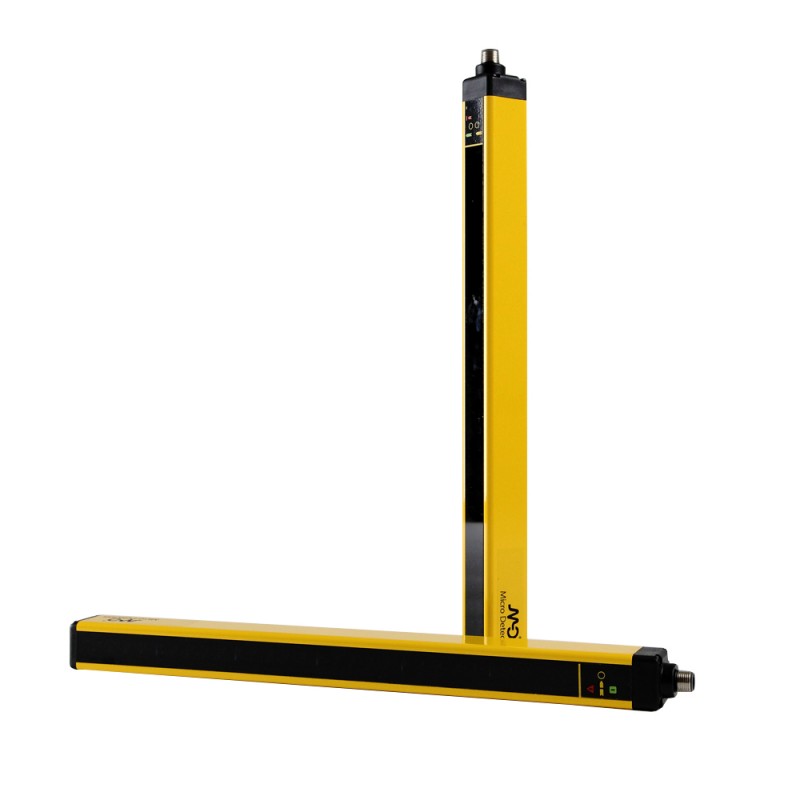

LS4ER/40-030B MICRO DETECTORS Safety sensor R 40mm h 310mm max. range 12m automatic restart
Reference: LS4ER/40-030B
Manufacturer: MICRO DETECTORS
Description:
Safety sensor R=40mm h=310mm max. range=12m automatic restart
LS4ER/40-030B Safety sensor R=40mm h=310mm max. range=12m automatic restart
Categories:
- MICRO DETECTORS > Encoders
Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
- More Info
- Reviews
* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
LAST VIEWED
MORE INFO
Technical details
Discovery properties
| Nominal range | ≤ 12m | |
| Protected height | 310mm | |
| Number of beams | Eleven | |
| Angle of opening cash | ±5° | |
Applications
| Principle of operation | Transmitter + receiver | |
| Functions available | Automatic restart | |
Security parameters
| Type | Four | |
| SIL | Three | |
| SLICL | Three | |
| PL | and | |
| PFHd | 7,76 E-09 | |
| Dcavg | 96,70% | |
| MTTFd | One hundred | |
| CFF | 80% | |
Outputs
| Output type | 2 x PNP-NA (safety output OSSD) | |
| Sensitivity adjustment | 4.5 ms | |
Electrical data
| Supply voltage | 19,2 ... 28,8 Vdc | |
| Load current | ≤ 400mA | |
| Delay to the availability | 2s | |
| Immunity to ambient light | According to the standard IEC 61496-2 | |
| Power input - receiver | 2W (without load) | |
| Power consumption - emitter | 1W | |
| Resistive load equivalent | ≥ 60 Ω | |
| Load capacitive | ≥ 0,82 µF | |
| Length cables (power/output) | ≤ 100m | |
| Length cable connections master slave | ≤ 50m | |
Mechanical data
| Dimensions | 28mm (front) x 30mm | |
| Connections | M12-5-pin (transmitter)M12-5 poles (receiver) | |
| Operating temperature | -10°C ÷ +55°C (with no condensation) | |
| Storage temperature | -25°C ÷ +70°C (without condensation) | |
| Moisture | 95% (non-condensing) | |
Test/Certifications
| Certifications | CE, cULus, TÜV | |
| Electromagnetic compatibility | According to directive 2014/30/EU | |
| Shock and vibration | According to the standard IEC 61496-1 | |
| Degree of protection | IP65, IP67 | |
Accessories
| Accessories included | ST 204 4S | |
Electrical wiring diagram of the connections
Connector
Dimension (mm)
DATASHEET - PDF
Title
Size
Type
79 Mbytes
