MICRO DETECTORS LS4ER/14-120F LS4ER/14-120F - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

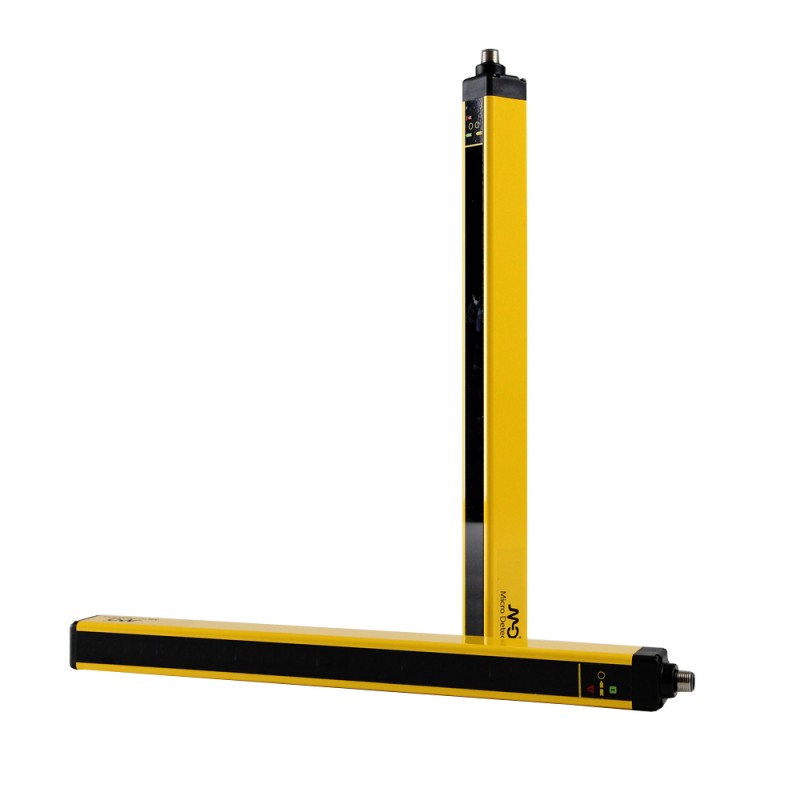

LS4ER/14-120F MICRO DETECTORS Safety sensor R 14mm h 1210mm max. range 6m, final slave

Reference: LS4ER/14-120F

Manufacturer: MICRO DETECTORS

Description:

Safety sensor R=14mm h=1210mm max. range=6m, final slave
LS4ER/14-120F Safety sensor R=14mm h=1210mm max. range=6m slave fin.

Categories:

  • MICRO DETECTORS > Encoders

Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS

  • More Info
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

Technical details

Discovery properties

Nominal range≤ 6m
Protected height1210mm
Number of beamsOne hundred twenty
Angle of opening cash±5°

Applications

Principle of operationTransmitter + receiver

Security parameters

TypeFour
SILThree
SLICLThree
PLand
PFHd2,73 E-08
Dcavg93,10%
MTTFdOne hundred
CFF80%

Outputs

Output type2 x PNP-NA (safety output OSSD)
Sensitivity adjustmentTo 16.5 ms
Response time (master + slave)T=[0,06*(Tesclavo+Tmaestro)+0,9636]*2
Response time (master + 2 slaves)T=[0,06*(Tesclavo1+Tesclavo2+Tmaestro)+1,0036]*2

Electrical data

Supply voltage19,2 ... 28,8 Vdc
Load current≤ 400mA
Delay to the availability2s
Immunity to ambient lightAccording to the standard IEC 61496-2
Power input - receiver2W (without load)
Power consumption - emitter1W
Resistive load equivalent≥ 60 Ω
Load capacitive≥ 0,82 µF
Length cables (power/output)≤ 100m
Length cable connections master slave≤ 50m

Mechanical data

Dimensions28mm (front) x 30mm
ConnectionsM12-5-pin (transmitter)M12-5 poles (receiver)
Operating temperature-10°C ÷ +55°C (with no condensation)
Storage temperature-25°C ÷ +70°C (without condensation)
Moisture95% (non-condensing)

Test/Certifications

CertificationsCE, cULus, TÜV
Electromagnetic compatibilityAccording to directive 2014/30/EU
Shock and vibrationAccording to the standard IEC 61496-1
Degree of protectionIP65, IP67

Accessories

Accessories includedST 204 6S

Electrical wiring diagram of the connections


Connector
