LS2ER/90-150
MICRO DETECTORS
1

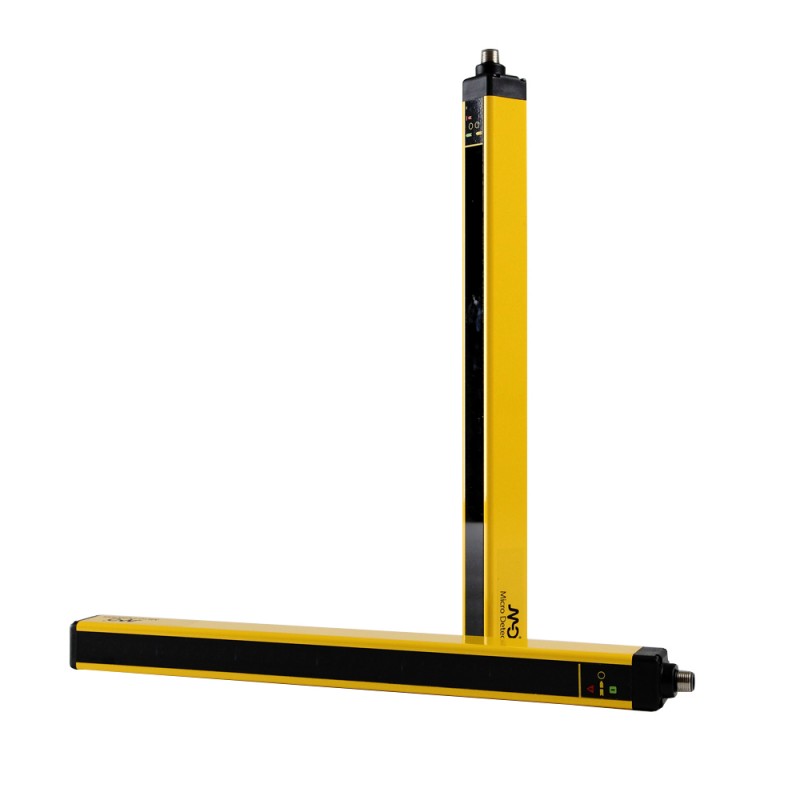

Safety sensor R=90mm h=1510mm max. range=12m auto-manual restart + EDM
LS2ER/90-150 Safety sensor R=90mm h=1510mm max. range=12m auto-manual restart + EDM
Encoders
* Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Nominal sensing distance | ≤ 12m | |
controlled height | 1510mm | |
number of rays | 20 | |
Effective Aperture Angle | ±5° |
Function Principle | Emitter + Receiver | |
Available functions | Manual/Automatic Restart, EDM |
Type | 2 | |
SIL | 1 | |
SILCL | 1 | |
PL | c | |
PFHd | 3,63E-08 | |
Dcavg | 92,40% | |
MTTFd | 100 | |
CFF | 80% |
Output type | 2 x PNP-NO (OSSD safety output) | |
Response time | 7 |
Operating Voltage | 19,2 … 28,8 Vcc | |
Load current | ≤ 400mA | |
Time delay before availability | 2s | |
Interference to external light | according to IEC 61496-2 | |
Power Consumption - Receiver | 2W (no load) | |
Power Consumption - Emitter | 1W | |
Equivalent Resistive Load | ≥ 60 Ω | |
Capacitive Load | ≥ 0,82 µF | |
Cabel Length (Power Supply/Output) | ≤ 100m | |
Cable Length for Master Slave Interconnections | ≤ 50m |
Dimensions | 28mm (front) x 30mm | |
Connections | M12-5 poles (emitter)M12-8 poles (receiver) | |
Operating temperature | -10°C ÷ +55°C (no condensation) | |
Storage temperature | -25°C ÷ +70°C (no condensation) | |
humidity | 95% (no condensation) |
Approvals | CE, cULus, TÜV | |
EMC compatibility | According to 2014/30/EU Directive | |
Shocks and vibrations | according to IEC 61496-1 | |
Degree of protection | IP65, IP67 |
Supplied Accessories | ST 204 6S |
Title: | Size: | Type: |
---|---|---|
PDF CATALOGUE MICRODETECTORS EN.pdf | 4 Mbytes | |
Download general catalog |
