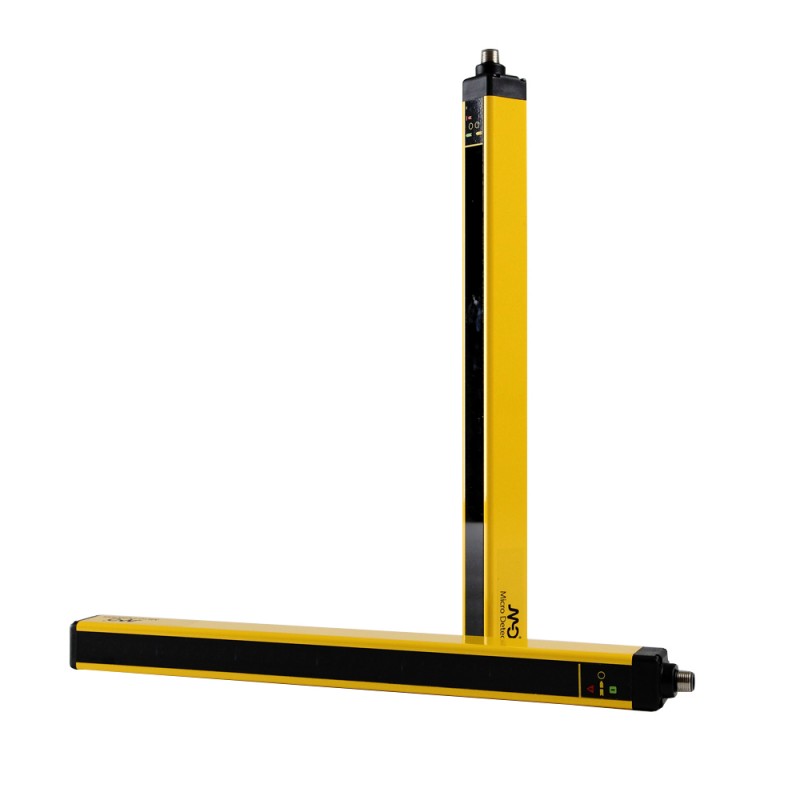

LS2ER/90-120M MICRO DETECTORS Safety sensor R 90mm h 1210mm max. range 12m master auto-manual restart EDM View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

LS2ER/90-120M MICRO DETECTORS Safety sensor R 90mm h 1210mm max. range 12m master auto-manual restart EDM

LS2ER/90-120M

MICRO DETECTORS

Safety sensor R=90mm h=1210mm max. range=12m master - auto-manual restart + EDM

More details


Encoders

* Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS

Total price: $1,821.70
Unit price: $1,821.70

*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

More info



Technical features

Nominal sensing distance≤ 12m
controlled height1210mm
number of rays16
Effective Aperture Angle±5°

Application

Function PrincipleEmitter + Receiver
Available functionsManual/Automatic Restart, EDM

Type2
SIL1
SILCL1
PLc
PFHd3,18E-08
Dcavg92,80%
MTTFd100
CFF80%

Outputs

Output type2 x PNP-NO (OSSD safety output)
Response time6ms
Response Time (Master + Slave)T=[0,1104*(Tslave+Tmaster)+1,1044]*2
Response Time (Master + 2 Slave)T=[0,1104*(Tslave1+Tslave2+Tmaster)+1,3228]*2

Electrical data

Operating Voltage19,2 … 28,8 Vcc
Load current≤ 400mA
Time delay before availability2s
Interference to external lightaccording to IEC 61496-2
Power Consumption - Receiver2W (no load)
Power Consumption - Emitter1W
Equivalent Resistive Load≥ 60 Ω
Capacitive Load≥ 0,82 µF
Cabel Length (Power Supply/Output)≤ 100m
Cable Length for Master Slave Interconnections≤ 50m

Mechanical data

Dimensions28mm (front) x 30mm
Connections2 x M12-5 poles (emitter)M12-8 poles + M12-5 poles (receiver)
Operating temperature-10°C ÷ +55°C (no condensation)
Storage temperature-25°C ÷ +70°C (no condensation)
humidity95% (no condensation)

Test/Approvals

ApprovalsCE, cULus, TÜV
EMC compatibilityAccording to 2014/30/EU Directive
Shocks and vibrationsaccording to IEC 61496-1
Degree of protectionIP65, IP67

Accessories

Supplied AccessoriesST 204 6S

Electrical diagrams of the connections


Connector


Dimension (mm)




Datasheet - PDF
