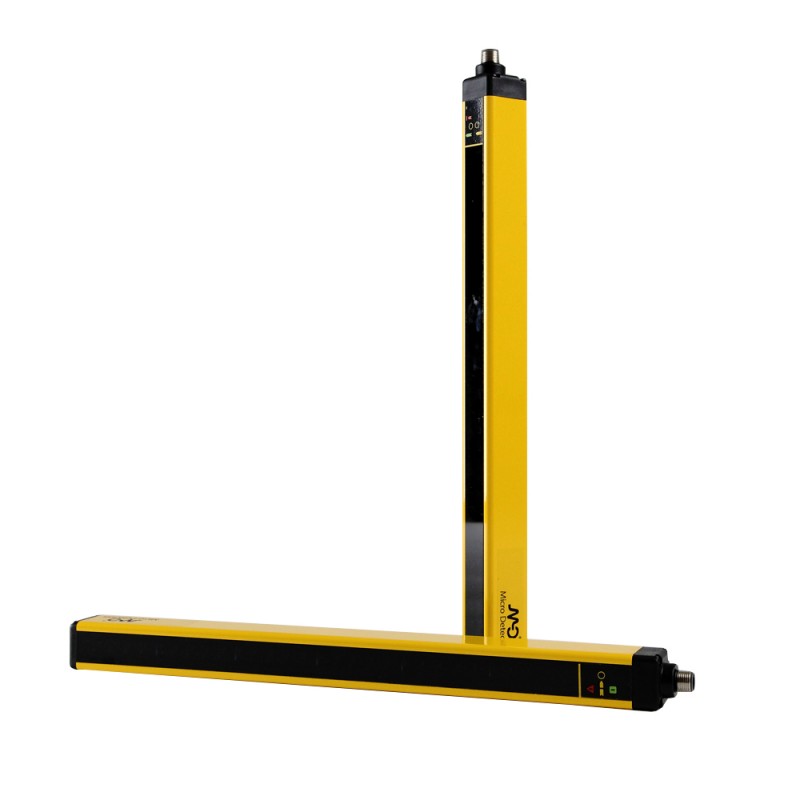

LS2ER/90-105S MICRO DETECTORS Safety sensor R 90mm h 1060mm max. range 12m, intermediate slave
LS2ER/90-105S
MICRO DETECTORS
Safety sensor R=90mm h=1060mm max. range=12m, intermediate slave
LS2ER/90-105S Safety sensor R=90mm h=1060mm max. range=12m slave int.
Encoders
* Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
Best sellers
▲More info
▲Technical features
| Nominal sensing distance | ≤ 12m | |
| controlled height | 1060mm | |
| number of rays | 14 | |
| Effective Aperture Angle | ±5° | |
Application
| Function Principle | Emitter + Receiver | |
| Type | 2 | |
| SIL | 1 | |
| SILCL | 1 | |
| PL | c | |
| PFHd | 2,95E-08 | |
| Dcavg | 93,00% | |
| MTTFd | 100 | |
| CFF | 80% | |
Outputs
| Output type | 2 x PNP-NO (OSSD safety output) | |
| Response time | 6ms | |
| Response Time (Master + Slave) | T=[0,1104*(Tslave+Tmaster)+1,1044]*2 | |
| Response Time (Master + 2 Slave) | T=[0,1104*(Tslave1+Tslave2+Tmaster)+1,3228]*2 | |
Electrical data
| Operating Voltage | 19,2 … 28,8 Vcc | |
| Load current | ≤ 400mA | |
| Time delay before availability | 2s | |
| Interference to external light | according to IEC 61496-2 | |
| Power Consumption - Receiver | 2W (no load) | |
| Power Consumption - Emitter | 1W | |
| Equivalent Resistive Load | ≥ 60 Ω | |
| Capacitive Load | ≥ 0,82 µF | |
| Cabel Length (Power Supply/Output) | ≤ 100m | |
| Cable Length for Master Slave Interconnections | ≤ 50m | |
Mechanical data
| Dimensions | 28mm (front) x 30mm | |
| Connections | 2 x M12-5 poles (emitter)2 x M12-5 poles (receiver) | |
| Operating temperature | -10°C ÷ +55°C (no condensation) | |
| Storage temperature | -25°C ÷ +70°C (no condensation) | |
| humidity | 95% (no condensation) | |
Test/Approvals
| Approvals | CE, cULus, TÜV | |
| EMC compatibility | According to 2014/30/EU Directive | |
| Shocks and vibrations | according to IEC 61496-1 | |
| Degree of protection | IP65, IP67 | |
Accessories
| Supplied Accessories | ST 204 4S | |
Electrical diagrams of the connections
Connector
Dimension (mm)
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE MICRODETECTORS EN.pdf | 4 Mbytes |
|
| Download general catalog |
|
