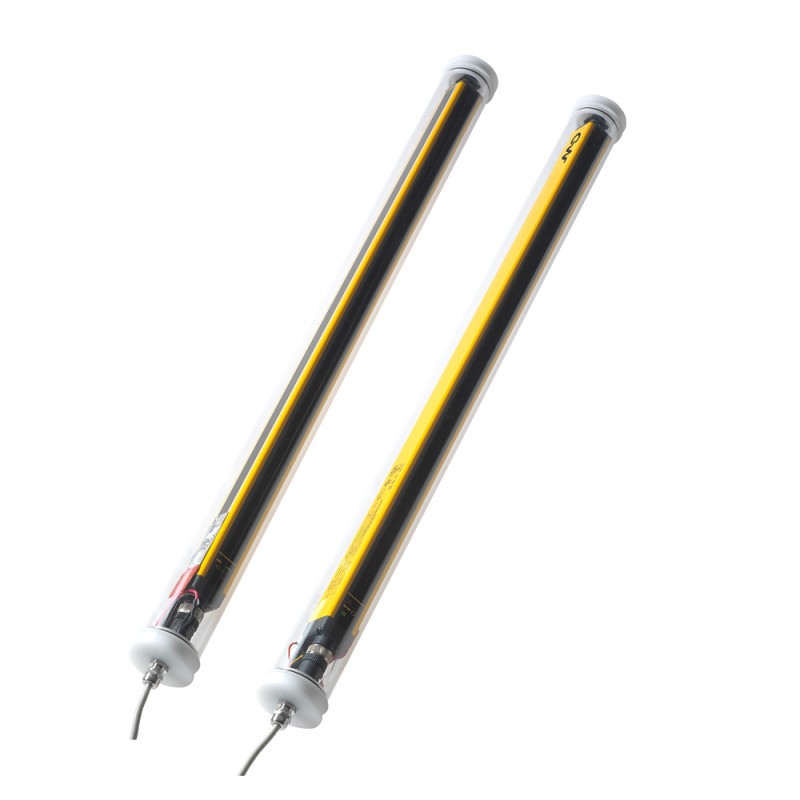

LS2ER/0C-090K MICRO DETECTORS Safety sensor 4 beams max. range 10m auto-manual restart EDM
LS2ER/0C-090K
MICRO DETECTORS
Safety sensor 4 beams max. range=10m auto-manual restart + EDM
LS2ER/0C-090K Safety sensor 4 beams max. range=10m auto-manual restart + EDM
Encoders
Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
Best sellers
▲More info
▲Technical details
Discovery properties
| Nominal range | ≤ 12m | |
| Protected height | 900mm | |
| Number of beams | Four | |
| Angle of opening cash | ±5° | |
Applications
| Principle of operation | Transmitter + receiver | |
| Functions available | Manual reset/automatic, EDM | |
Security parameters
| Type | Two | |
| SIL | One | |
| SLICL | One | |
| PL | c | |
| PFHd | 2,02 E-08 | |
| Dcavg | 94,20% | |
| MTTFd | One hundred | |
| CFF | 80% | |
Outputs
| Output type | 2 x PNP-NA (safety output OSSD) | |
| Sensitivity adjustment | 3,5 ms | |
Electrical data
| Supply voltage | 19,2 ... 28,8 Vdc | |
| Load current | ≤ 400mA | |
| Delay to the availability | 2s | |
| Immunity to ambient light | according to the standard IEC 61496-2 | |
| Power input - receiver | 2W (without load) | |
| Power consumption - emitter | 1W | |
| Resistive load equivalent | ≥ 60 Ω | |
| Load capacitive | ≥ 0,82 µF | |
| Length cables (power/output) | ≤ 100m | |
| Length cable connections master slave | ≤ 50m | |
Mechanical data
| Dimensions | 28mm (front) x 30mm | |
| Connections | Cable 5 conductors (emitter)Cable 8-conductor (receiver) | |
| Operating temperature | -10°C ÷ +55°C (with no condensation) | |
| Storage temperature | -25°C ÷ +70°C (without condensation) | |
| Moisture | 95% (non-condensing) | |
Test/Certifications
| Certifications | CE, cULus, TÜV | |
| Electromagnetic compatibility | According to directive 2014/30/EU | |
| Shock and vibration | according to the standard IEC 61496-1 | |
| Degree of protection | IP65, IP67, IP69K | |
Accessories
| Accessories included | ST 204 4S | |
Electrical wiring diagram of the connections
Dimension (mm)
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE MICRODETECTORS EN.pdf | 79 Mbytes |
|
| Download general catalog |
|
