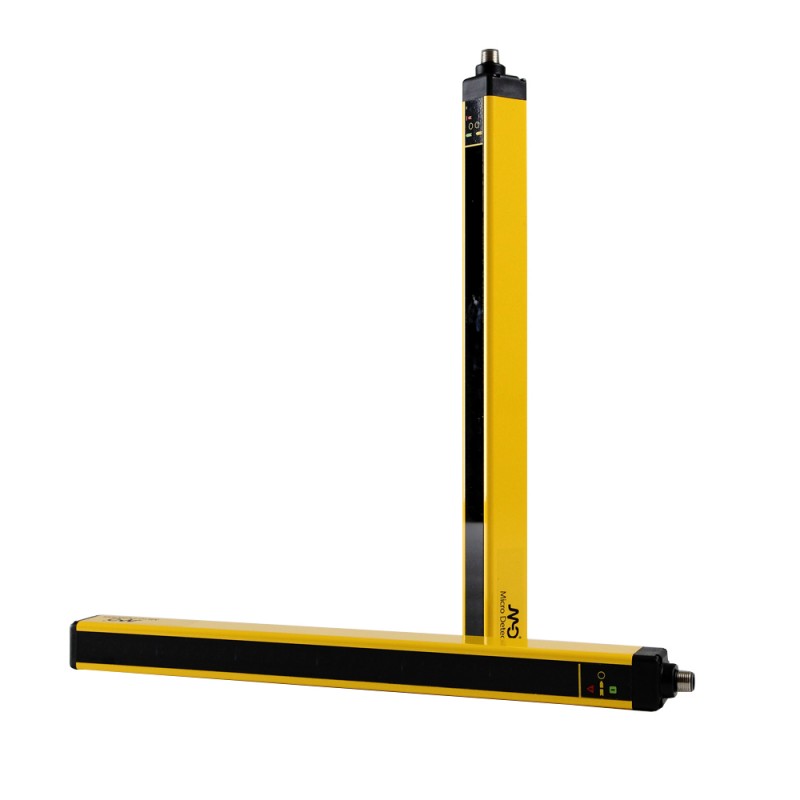

LS2ER/0B-080B MICRO DETECTORS Safety sensor 3 beams max. range 12m automatic restart
Reference: LS2ER/0B-080B
Manufacturer: MICRO DETECTORS
Description:
Safety sensor 3 beams max. range=12m automatic restart
LS2ER/0B-080B Safety sensor 3 beams max. range=12m automatic restart
Categories:
- MICRO DETECTORS > Encoders
Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
- More Info
- Reviews
* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
- These delivery times are an estimate any may vary when the item order has been processed.
MORE INFO
Technical features
| Nominal sensing distance | ≤ 12m | |
| controlled height | 800mm | |
| number of rays | 3 | |
| Effective Aperture Angle | ±5° | |
Application
| Function Principle | Emitter + Receiver | |
| Available functions | Automatic Restart | |
| Type | 2 | |
| SIL | 1 | |
| SILCL | 1 | |
| PL | c | |
| PFHd | 1,87E-08 | |
| Dcavg | 94,60% | |
| MTTFd | 100 | |
| CFF | 80% | |
Outputs
| Output type | 2 x PNP-NO (OSSD safety output) | |
| Response time | 3,5ms | |
Electrical data
| Operating Voltage | 19,2 … 28,8 Vcc | |
| Load current | ≤ 400mA | |
| Time delay before availability | 2s | |
| Interference to external light | according to IEC 61496-2 | |
| Power Consumption - Receiver | 2W (no load) | |
| Power Consumption - Emitter | 1W | |
| Equivalent Resistive Load | ≥ 60 Ω | |
| Capacitive Load | ≥ 0,82 µF | |
| Cabel Length (Power Supply/Output) | ≤ 100m | |
| Cable Length for Master Slave Interconnections | ≤ 50m | |
Mechanical data
| Dimensions | 28mm (front) x 30mm | |
| Connections | M12-5 poles (emitter)M12-5 poles (receiver) | |
| Operating temperature | -10°C ÷ +55°C (no condensation) | |
| Storage temperature | -25°C ÷ +70°C (no condensation) | |
| humidity | 95% (no condensation) | |
Test/Approvals
| Approvals | CE, cULus, TÜV | |
| EMC compatibility | According to 2014/30/EU Directive | |
| Shocks and vibrations | according to IEC 61496-1 | |
| Degree of protection | IP65, IP67 | |
Accessories
| Supplied Accessories | ST 204 4S | |
Electrical diagrams of the connections
Connector
Dimension (mm)
