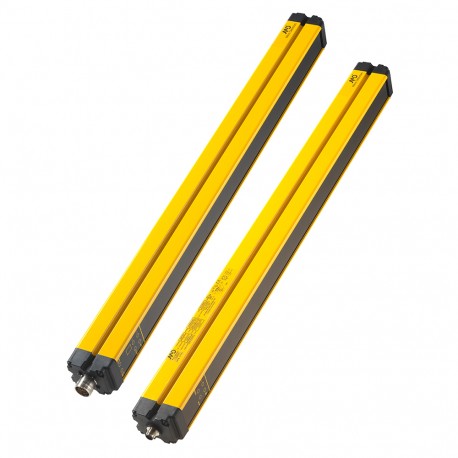

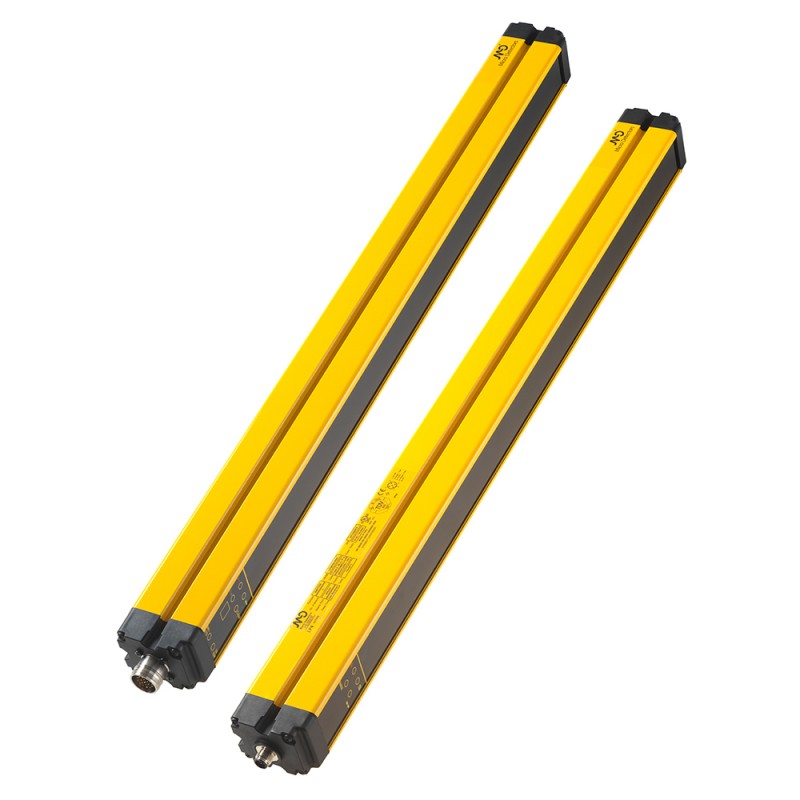

LP4ER/40-045M4 MICRO DETECTORS Safety sensor R 40mm h 460mm max. range 16m Muting 4 inputs auto-manual resta..
LP4ER/40-045M4
MICRO DETECTORS
Safety sensor R=40mm h=460mm max. range=16m Muting 4 inputs - auto-manual restart + EDM
Encoders
Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
Best sellers
▲More info
▲Technical details
Discovery properties
| Nominal range | ≤ 16m | |
| Protected height | 460mm | |
| Number of beams | Fifteen | |
| Angle of opening cash | ≤ ±2,5° | |
Applications
| Principle of operation | Transmitter + receiver | |
| Functions available | Manual reset/automatic, EDM, status barrier, Muting 4 sensors | |
Security parameters
| Type | Four | |
| SIL | Three | |
| SLICL | Three | |
| PL | and | |
| PFHd | 9,45 E-09 | |
| Dcavg | 98,29% | |
| MTTFd | One hundred | |
| CFF | 80% | |
Outputs
| Output type | 2 x PNP-NA (safety output OSSD) | |
| Sensitivity adjustment | 11ms | |
Electrical data
| Supply voltage | 19,2 ... 28,8 Vdc | |
| Load current | 500mA | |
| Delay to the availability | 15s | |
| Immunity to ambient light | According to the standard IEC 61496-2 | |
| Power input - receiver | 6W | |
| Power consumption - emitter | 3W | |
| Resistive load equivalent | ≥ 48 Ω | |
| Load capacitive | ≥ 2 µF | |
| Length cables (power/output) | 100m | |
Mechanical data
| Dimensions | 50mm (front) x 60mm | |
| Connections | M12-5-pole (emitter)M23-19-pin (receiver)2 x M12-5 poles (Muting) | |
| Operating temperature | 0°C...+55°C | |
| Storage temperature | -25°C...+70°C | |
| Moisture | 95% (non-condensing) | |
Test/Certifications
| Certifications | CE, cULus, TÜV | |
| Electromagnetic compatibility | According to directive 2014/30/EU | |
| Shock and vibration | According to the standard IEC 61496-1 | |
| Degree of protection | IP65 | |
Accessories
| Accessories included | ST 202, ST 203 | |
Electrical wiring diagram of the connections
Dimension (mm)
Datasheet - PDF
