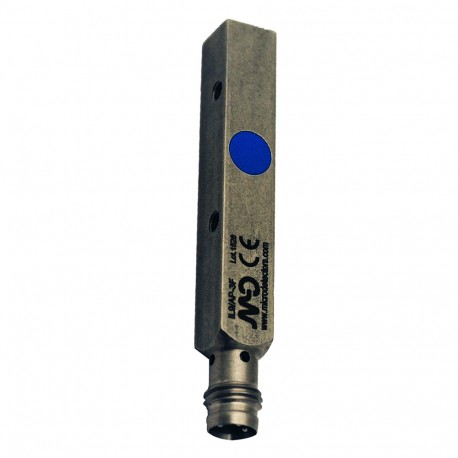

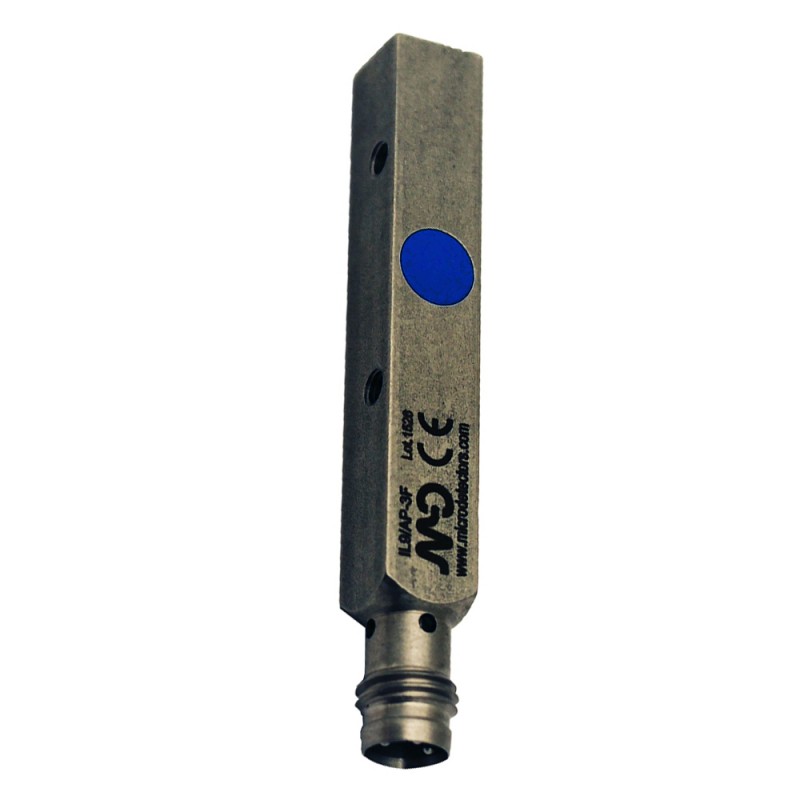

IL9/AN-5F MICRO DETECTORS Inductive sensor 8x8, centre detection, Sensing distance 2,5mm, NPN-NO, M8 plug
IL9/AN-5F
MICRO DETECTORS
Inductive sensor 8x8, centre detection, Sensing distance=2,5mm, NPN-NO, M8 plug
IL9/AN-5F Inductive sensor 8x8, centre detection, Sn=2,5mm, NPN-NO, M8 plug
Encoders
Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
Best sellers
▲More info
▲Technical details
Discovery properties
| Nominal range | 2.5 mm | |
| Operating range | 0...2.02 mm | |
| Object reference | 8x8mm FE360 | |
| Correction Factor | copper: 0,18 / aluminum: 0.16 in / brass: 0,26 / stainless steel: 0,58 | |
| Thermal drift | < 10% | |
| Repeatability | 5% (UB 24V Ta=23°C ±5°C) | |
| Hysteresis | 1 ... 20% | |
Outputs
| Output type | NPN | |
| Exit function | NOT | |
| Switching frequency | 5kHz | |
Electrical data
| Supply voltage | 10 - 30vdc | |
| Absorption of current in the vacuum | ≤ 10mA | |
| Load current | ≤ 200mA | |
| Leakage current | ≤ 10µA | |
| Voltage drop to the output | ≤ 1.5 V @200mA | |
| Maximum residual ripple | ≤10% | |
| LED indicators | Yellow LED output status | |
| Delay to the availability | ≤ 50ms | |
| Protection short circuit | Yes | |
| Protection polarity reversal | Yes | |
| Protection against inductive loads | Yes | |
Mechanical data
| Dimensions | 8 x 8 / L = 59mm / active surface in the central part | |
| Mounting | Flush | |
| Weight | 15g | |
| body material | stainless steel AISI 303 | |
| Connections | M8 Connector | |
| Material of the active surface | PBT | |
| Operating temperature | -25°C...+70°C | |
Test/Certifications
| Certifications | CEcULus | |
| Electromagnetic compatibility | IEC 60947-5-2 | |
| Shock and vibration | Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 | |
| Degree of protection | IP 67 (EN60529) | |
Electrical wiring diagram of the connections
Connector
Dimension (mm)
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE MICRODETECTORS EN.pdf | 79 Mbytes |
|
| Download general catalog |
|
