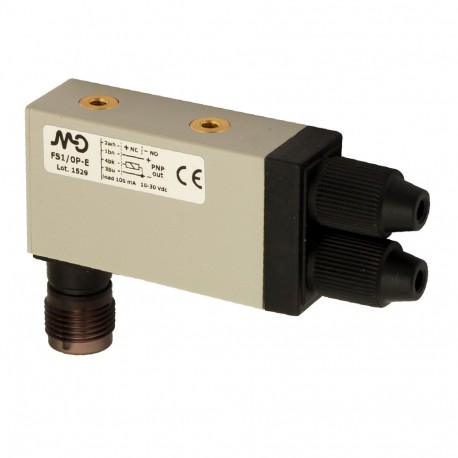

MICRO DETECTORS FS1/0P-E FS1/0P-E - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

FS1/0P-E MICRO DETECTORS Fibre amplifier Optical fibre amplifier PNP plug M12

Reference: FS1/0P-E

Manufacturer: MICRO DETECTORS

Description:

Fibre amplifier Optical fibre amplifier PNP plug M12
FS1/0P-E Optical Fibre Amplifier PNP conn. M12

Categories:

  • MICRO DETECTORS > Encoders

Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS

  • More Info
  • Reviews
Guarantee, repair and return.

Unit Price: 82,34 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 4-6 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Technical features

Nominal sensing distanceSee optical fibres table
Sensitivity adjustment1 turn trimmer

Outputs

Output typePNP
Output FunctionLO / DO selectable
Switching frequency1 kHz

Electrical data

Operating Voltage10….30 Vdc
No-Load supply current100 mA
Load current30 mA
Output voltage drop1.2 V max
Max ripple content≤ 10 %
LED indicatorsRed (output NO energized)
Time delay before availability200 ms
Short-circuit protectionYes
Reverse Polarity ProtectionYes
EmissionRed (660 nm)
Interference to external light30.000lux (incandescent lamp), 10.000lux (sunlight)

Mechanical data

Dimensions15x26x67 mm
Weight50 g
Housing MaterialPolyammide
ConnectionsM12 plug 90°
Active Head MaterialDepending by optical fibres
Operating temperature- 25°C…+ 70°C (without freeze)

Test/Approvals

ApprovalsCE
Degree of protectionIP65 (EN60529)

Electrical diagrams of the connections


Connector


Dimension (mm)
