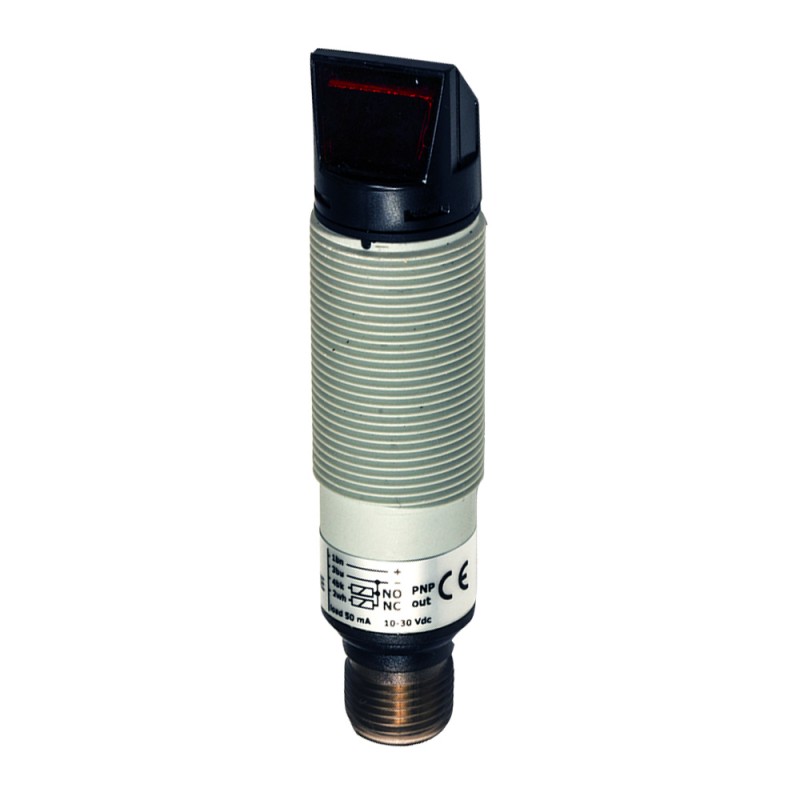

MICRO DETECTORS FQIH/00-2E FQIH/00-2E - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

FQIH/00-2E MICRO DETECTORS Photoelectric sensor 90° Emitter 15 m plastic plug M12

Reference: FQIH/00-2E

Manufacturer: MICRO DETECTORS

Description:

Photoelectric sensor 90° Emitter 15 m plastic plug M12
FQIH/00-2E Photoelectric sensor 90° Emitt. 15 m plast. conn. M12

Categories:

  • MICRO DETECTORS > Encoders

Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS

  • More Info
  • Reviews
Guarantee, repair and return.

Unit Price: 51,76 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 4-6 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Technical features

Nominal sensing distance15m
Thermal drift of Sr≤10% Sr

Application

Function PrincipleThrough beam
Emitter/ReceiverEmitter
Optic positionRight angle (90°)

Electrical data

Operating Voltage10-30Vdc
No-Load supply current≤25mA
Max ripple content10%
LED indicatorsGreen (powerON)
Time delay before availability≤200ms
Reverse Polarity ProtectionPolarity inversal, Inpulsive voltage
EmissionInfrared (880 nm)

Mechanical data

DimensionsM18 x 1/L=76,3mm
Weight30g
Housing MaterialPBT
ConnectionsM12 Plug
Active Head MaterialPC
Tightening torque1Nm
Operating temperature- 25°C…+ 70° C (Without freeze)

Test/Approvals

ApprovalsCE,
EMC compatibilityEN 60947-5-2
Shocks and vibrationsVibration IEC 60068-2-6 / Shock IEC 60068-2-27
Degree of protectionIP67

Accessories

Supplied Accessoriesnuts M18 x 1, screwdriver

Electrical diagrams of the connections


Connector


Dimension (mm)



Response curves

Dimensione Spot


Disassamento Parallelo


Eccesso di Guadagno
