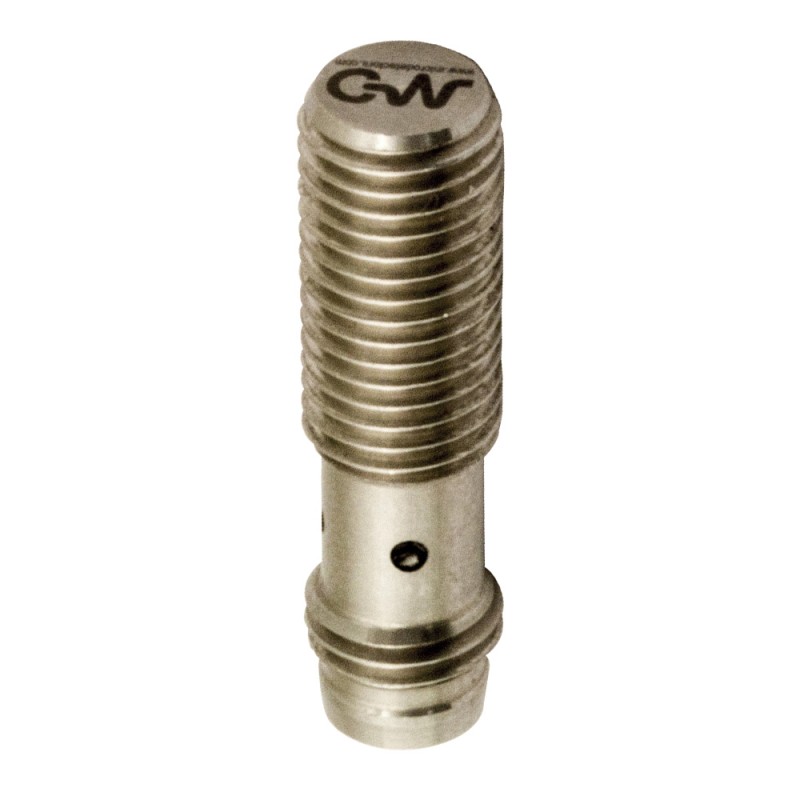

FMES/CP-3F MICRO DETECTORS Inductive sensor full metal housing M8 mini PNP/NC M8 plug exit
FMES/CP-3F
MICRO DETECTORS
Inductive sensor full metal housing M8 mini PNP/NC M8 plug exit
FMES/CP-3F Inductive sensor full metal M8 mini PNP/NC M8 plug exit
Encoders
Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
Best sellers
▲More info
▲Technical features
| Nominal sensing distance | 2mm | |
| Operanting distance | 0…1,62mm | |
| Standard target | 8x8mm FE360 | |
| Correction Factor | copper: 0 / aluminium: 0 / brass: 0 / stainless steel: 0,3 | |
| Thermal drift of Sr | < 10% | |
| Repeat Accuracy | 5% (UB 24V Ta=23°C ±5°C) | |
| Hysteresis | 1 … 20% | |
Outputs
| Output type | PNP | |
| Output Function | NC | |
| Switching frequency | 250Hz | |
Electrical data
| Operating Voltage | 10 - 30Vdc | |
| No-Load supply current | ≤ 10mA | |
| Load current | ≤ 200mA | |
| Leakage current | ≤ 10μA | |
| Output voltage drop | ≤ 1,5V @200mA | |
| Max ripple content | ≤10% | |
| LED indicators | Yellow LED output state | |
| Time delay before availability | ≤ 50ms | |
| Short-circuit protection | Yes (auto-reset) | |
| Reverse Polarity Protection | Yes | |
| Protection against inductive loads | Yes | |
Mechanical data
| Dimensions | M8 x 1 / L = 29,4mm | |
| Mounting | Shielded | |
| Weight | 4g | |
| Housing Material | stainless steel AISI316L | |
| Connections | M8 Plug | |
| Active Head Material | stainless steel AISI316L | |
| Tightening torque | 5Nm | |
| Operating temperature | -25°C…+70°C | |
| 0,25mm | 0,25mm | |
Test/Approvals
| Approvals | CEcULus | |
| EMC compatibility | IEC 60947-5-2 | |
| Shocks and vibrations | Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 | |
| Degree of protection | IP 67 (EN60529) - IP68 - IP69K | |
| IK05 | IK05 | |
| 80bar | 80bar | |
Accessories
| Supplied Accessories | 2 nuts M8x1 | |
Electrical diagrams of the connections
Connector
Response curves
Disassamento Parallelo
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE MICRODETECTORS EN.pdf | 79 Mbytes |
|
| Download general catalog |
|
