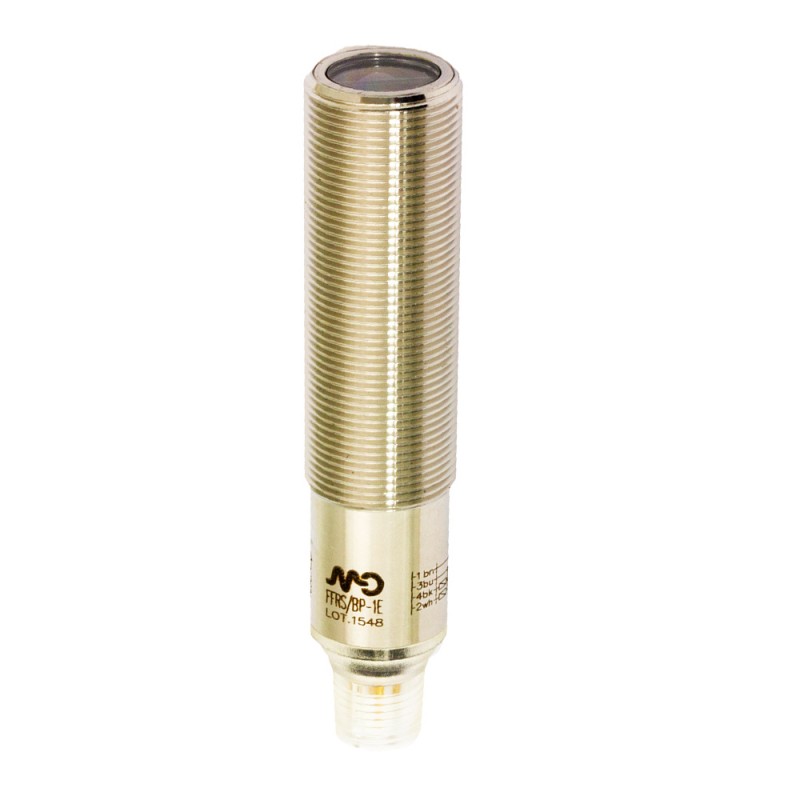

FFRN/BP-1E MICRO DETECTORS Photoelectric sensor Axial Retroreflective 4m, adjustment PNP NO+NC plug M12
FFRN/BP-1E
MICRO DETECTORS
Photoelectric sensor Axial Retroreflective 4m, adjustment PNP NO+NC plug M12
FFRN/BP-1E Photoelectric sensor Axial Retroreflective 4m adj. PNP NO+NC conn. M12
Encoders
* Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
Best sellers
▲More info
▲Technical features
| Nominal sensing distance | 4.500mm | |
| Thermal drift of Sr | 10% Sr | |
| Repeat Accuracy | 5% | |
| Sensitivity adjustment | Teach | |
Application
| Function Principle | Polarized | |
| Notes | With RL110 reflector | |
| Optic position | Axial | |
Outputs
| Output type | PNP | |
| Output Function | NO+NC | |
| Switching frequency | 500Hz | |
Electrical data
| Operating Voltage | 10-30Vdc | |
| No-Load supply current | ≤35mA (at Val=30V) | |
| Load current | 100mA | |
| Leakage current | ≤10μA | |
| Output voltage drop | ≤2V IL=100mA | |
| Max ripple content | ≤10% | |
| LED indicators | Green: ON-teach function available; OFF-teach function blocked; fast flashing-fine teach active; slow flashing- teach in progress Yellow: light state-excess gain | |
| Time delay before availability | 200ms | |
| Short-circuit protection | Yes | |
| Reverse Polarity Protection | Yes | |
| Emission | Red (660nm) | |
| Interference to external light | 5.000lux (incandescent lamp), 10.000lux (sunlight) | |
Mechanical data
| Dimensions | M18x1/L=83mm | |
| Weight | 60g | |
| Housing Material | Stainless steel AISI319 | |
| Connections | M12 plug exit | |
| Active Head Material | PA12 | |
| Tightening torque | 50Nm | |
| Operating temperature | -25°C…+80°C (without freeze) | |
Test/Approvals
| Approvals | CE, Ex, Diversey, ECOLAB, cULus | |
| EMC compatibility | EN 60947-5-2 | |
| Shocks and vibrations | Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 | |
| Degree of protection | IP67, IP68 (1m, 7 days), IP69K | |
Accessories
| Supplied Accessories | Metallic nut (2x) | |
Electrical diagrams of the connections
Connector
Dimension (mm)
Response curves
Dimensione Spot
Disassamento Parallelo
Eccesso di Guadagno
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE MICRODETECTORS EN.pdf | 4 Mbytes |
|
| Download general catalog |
|
