Images are for illustrative purposes only. Please refer to data sheet for details.

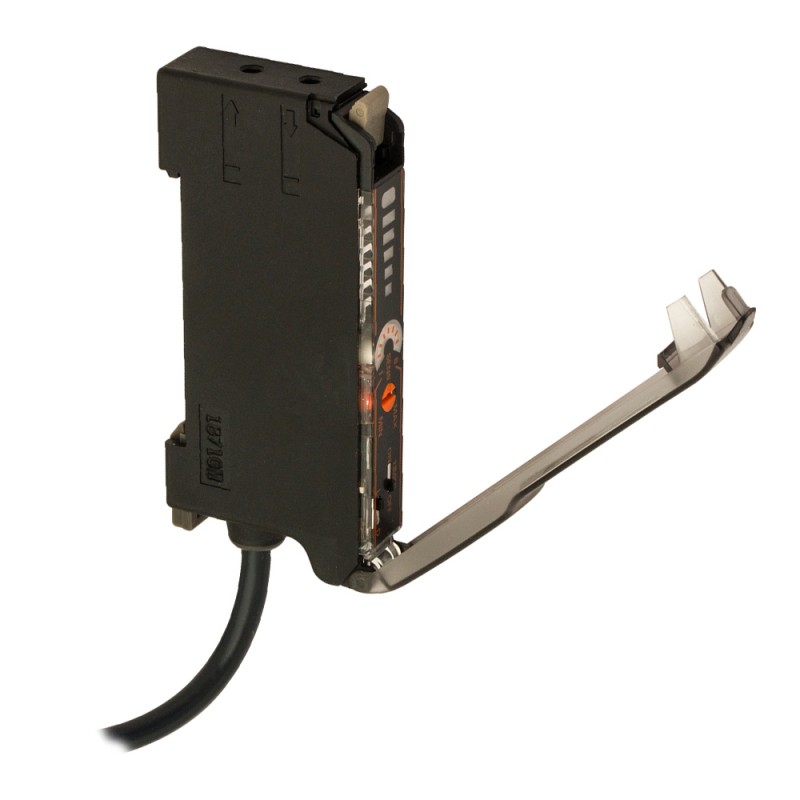

FFRL/BP-1EAN MICRO DETECTORS Photoelectric sensor Axial Retroreflective, for transparent objects 1m, adjustm..
Reference: FFRL/BP-1EAN
Manufacturer: MICRO DETECTORS
Description:
Photoelectric sensor Axial Retroreflective, for transparent objects 1m, adjustment PNP NO+NC II 3G Ex nA IIC T6, II 3D Ex tD A22 IP67 T85°C
FFRL/BP-1EAN Photoelectric sensor Axial Retroreflective for transparent objects 1m adj. PNP NO+NC ATEX CAT.3 GROUP 2/22
Categories:
- MICRO DETECTORS > Encoders
Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
- More Info
- Reviews
LAST VIEWED
MORE INFO
Technical features
| Nominal sensing distance | Depending on fibre used | |
| Repeat Accuracy | 5% | |
| Sensitivity adjustment | 8 turn trimmer | |
Outputs
| Output type | NPN | |
| Output Function | LO / DO selectable | |
| Switching frequency | Standard | |
| Response time | 200 µs max | |
Electrical data
| Operating Voltage | 12….24 Vdc | |
| No-Load supply current | < 35 mA | |
| Load current | 50 mA max | |
| Leakage current | < 10 µA | |
| Output voltage drop | 1 V max | |
| Max ripple content | ≤ 10 % | |
| LED indicators | Orange (output active); green (n.4 - received signal level); red (no received signal) | |
| Time delay before availability | ≤ 200 ms | |
| Short-circuit protection | Yes | |
| Reverse Polarity Protection | Yes | |
| Emission | Red (680 nm) | |
| Interference to external light | 10.000lux (incandescent lamp), 20.000lux (sunlight) | |
Mechanical data
| Dimensions | 10x31.5x64.3 mm | |
| Weight | 70 g (approx.) | |
| Housing Material | PBT (housing); PC (cover) | |
| Connections | 2 m PVC cable | |
| Operating temperature | - 25°C…+ 55°C (without freeze) | |
| Storage temperature | - 30°C…+ 70°C (without freeze) | |
Test/Approvals
| Approvals | CE | |
| EMC compatibility | EN 60947-5-2 | |
| Degree of protection | IP50 (EN60529) | |
Electrical diagrams of the connections
Dimension (mm)
DATASHEET - PDF
