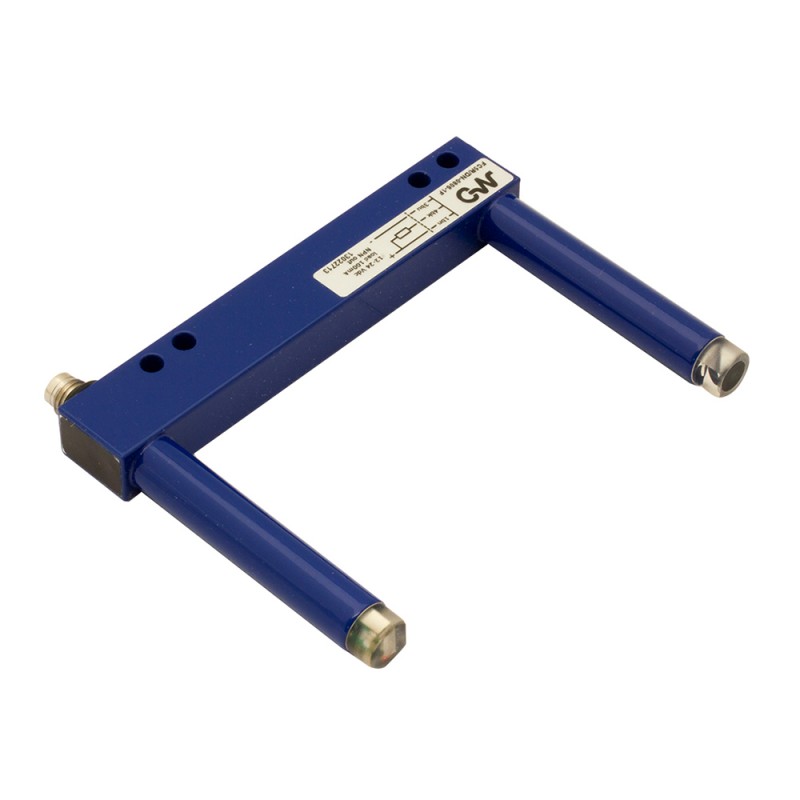

FC5R/DP-0806-1F MICRO DETECTORS Slot sensor 80mm wide RED LED PNP-NO M8
FC5R/DP-0806-1F
MICRO DETECTORS
Slot sensor 80mm wide RED LED PNP-NO M8
FC5R/DP-0806-1F Slot sensor 80mm wide RED LED PNP-NO M8
Encoders
* Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
Best sellers
▲More info
▲Technical features
| Nominal sensing distance | 80mm | |
| minimum detectable object | 0,8mm | |
| Si | Yes | |
| Sensitivity adjustment | No | |
Outputs
| Output type | PNP | |
| Output Function | DO | |
| Switching frequency | 4kHz | |
Electrical data
| Operating Voltage | 12-24Vdc | |
| No-Load supply current | ≤ 20mA | |
| Load current | 100mA | |
| Output voltage drop | ≤ 1,5V @ IL =100 mA | |
| Max ripple content | ≤ 10% | |
| Time delay before availability | 150ms | |
| Short-circuit protection | Yes | |
| Reverse Polarity Protection | Yes | |
| Emission | Red LED, modulated | |
| Interference to external light | 5000lux (incandescent lamp), 10000lux (sunlight) | |
Mechanical data
| Dimensions | Width slot detection 80mm - Depth slot detection 60mm | |
| Weight | 86g | |
| Housing Material | Painted aluminium | |
| Connections | Plug M8 3 pin | |
| Active Head Material | Polyamide/glass | |
| Operating temperature | - 10°C…+ 60°C | |
| Storage temperature | - 40°C…+ 80°C | |
Test/Approvals
| Approvals | CEUL | |
| EMC compatibility | EN 60947-5-2 | |
| Degree of protection | IP67 (EN60529) | |
Electrical diagrams of the connections
Connector
Dimension (mm)
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE MICRODETECTORS EN.pdf | 4 Mbytes |
|
| Download general catalog |
|
