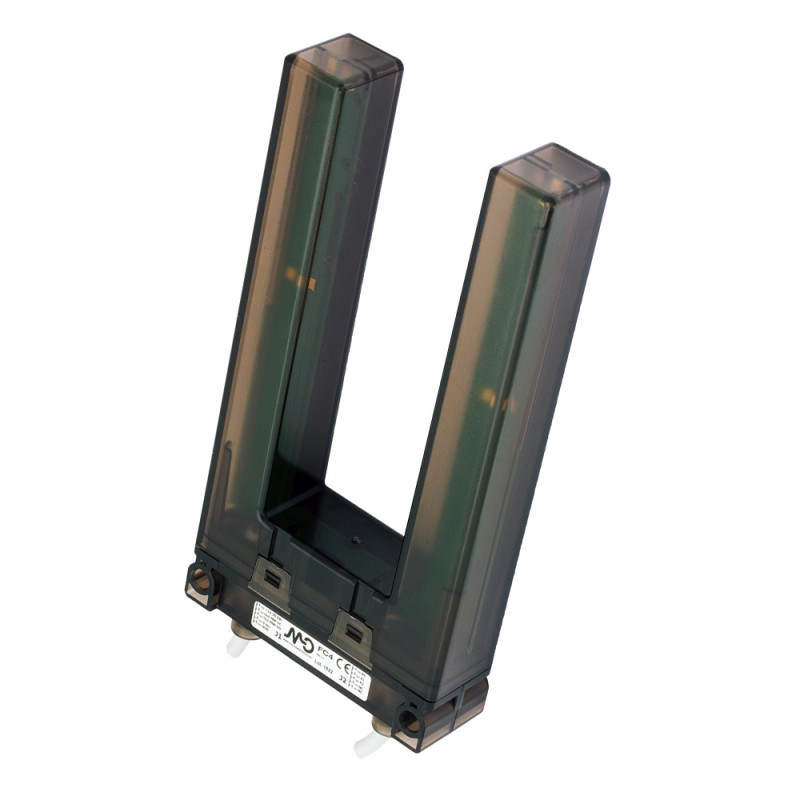

FC4/A-00 MICRO DETECTORS Slot sensor 4 beams 10-30Vdc with alarm output cable 2m
FC4/A-00
MICRO DETECTORS
Slot sensor 4 beams 10-30Vdc with alarm output cable 2m
Encoders
Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
Best sellers
▲More info
▲Technical features
| Beam angle | ± 15° | |
| Sensibility | 1 sheet of 80g/m2 white paper | |
| Tilting hysteresis | 7mm | |
| Optics diameter | 3mm | |
Outputs
| Output type | 2 x complementary PNP | |
| Switching frequency | 100 hz with 1/1 dark-light | |
| Sampling period | 4ms | |
| 4 optical scan period | 600µs | |
| Response time outputs ONO and ONC | 4,7ms | |
| Response time contact output A | 8ms (open); 500ms (close) | |
Electrical data
| Operating Voltage | 10 … 30 Vdc | |
| No-Load supply current | ≤ 70mA | |
| Load current | ≤ 300mA | |
| Leakage current | ≤ 10µA | |
| Output voltage drop | ≤ 2,5V @ Iload = 100mA | |
| Max ripple content | < 5Vpp | |
| Emission | infrared | |
| Interference to external light | 10000 lux (artificial light) | |
| Optical power class | 1 (no danger) | |
| Maximum capacitance load | 300mA | |
| Test input levels (expected, but not connected) | LO ≤ 5V (or open), HI * 15V according to IEC61131-2 (2007) | |
| VDE protection class | III (max. voltage 50VAC), 500V (insulation) | |
| Output A (alarm) | Electromechanical contact, 1A, 30Vdc, no short circuit protection | |
Mechanical data
| Dimensions | 26,4 x 83 x 162mm | |
| Weight | 200g | |
| Housing Material | PC | |
| Connections | 2 x cable | |
| Operating temperature | -20°C … + 55°C | |
| Storage temperature | -40°C … +75°C | |
| humidity | 15% … 95% | |
Test/Approvals
| Approvals | CE | |
| EMC compatibility | Conforming with EMC directive according with EN60947-5-2 | |
| Shocks and vibrations | shock resistance according to IEC60068-2-27:3 axes x 6, half sine, Acc: 30g; Dur: 11svibration resistance according IEC60068-2-6:freq:10…55hz; Ampl:0,5mm; Sweep:5min; Fr: 3x30min | |
| Degree of protection | IP67 | |
Electrical diagrams of the connections
Dimension (mm)
Datasheet - PDF
