MICRO DETECTORSEncodersFC3 MICRO DETECTORS Slot sensor 2 beams 14-30Vdc out Triac

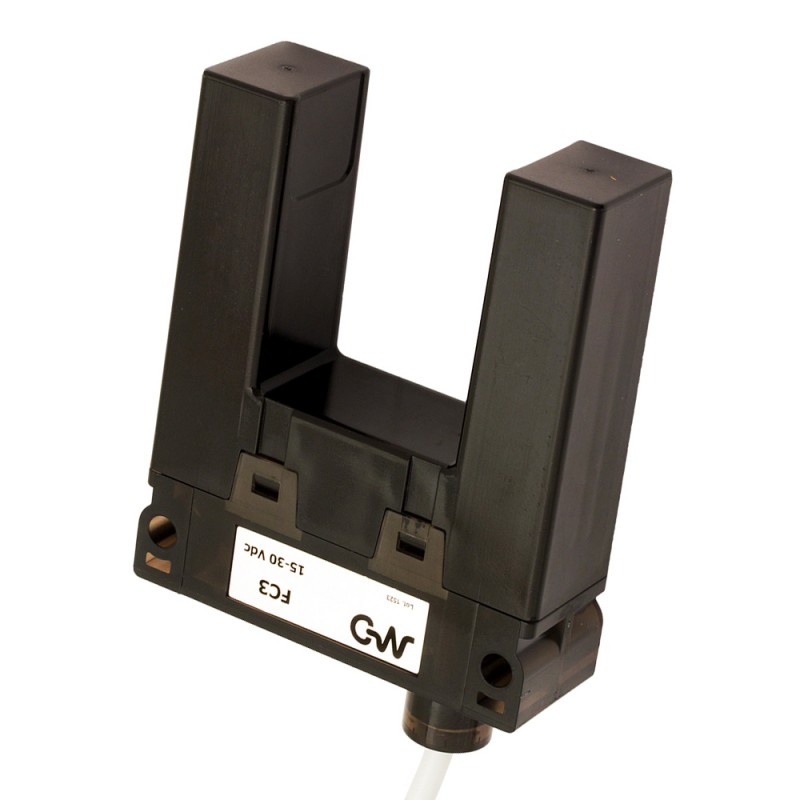

MICRO DETECTORS FC3 FC3 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

FC3 MICRO DETECTORS Slot sensor 2 beams 14-30Vdc out Triac

Reference: FC3

Manufacturer: MICRO DETECTORS

Description:

Slot sensor 2 beams 14-30Vdc out Triac
FC3 slot sensor 2 beams 14-30Vdc out Triac

Categories:

  • MICRO DETECTORS > Encoders

Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS

  • More Info
  • Reviews
Guarantee, repair and return.

Unit Price: 191,20 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 4-6 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Technical features

Beams space6,8mm
Optics diameter3mm

Outputs

Output typeTRIAC
Output FunctionLO/DO
Switching frequency25Hz

Electrical data

Operating Voltage10 … 30Vdc
No-Load supply current≤ 30mA
Load current≤ 500mA (V=110Vac)
Leakage current≤ 250µA (V=250V max))
Output voltage drop≤ 1,2V @ Iload=500mA
Max ripple content< 10%
LED indicatorsgreen (supply)red (output)
Emissioninfrared
Inrush current5A (T=10µs)
Blocking voltage / Operating voltage± 400V - 110Vac eff.
Zero-voltage switchingyes

Mechanical data

Dimensions26,4 x 75 x 90 mm
Weight122g
Housing MaterialPCB
ConnectionsPigtail

Test/Approvals

ApprovalsCE
Degree of protectionIP64

Electrical diagrams of the connections


Dimension (mm)
