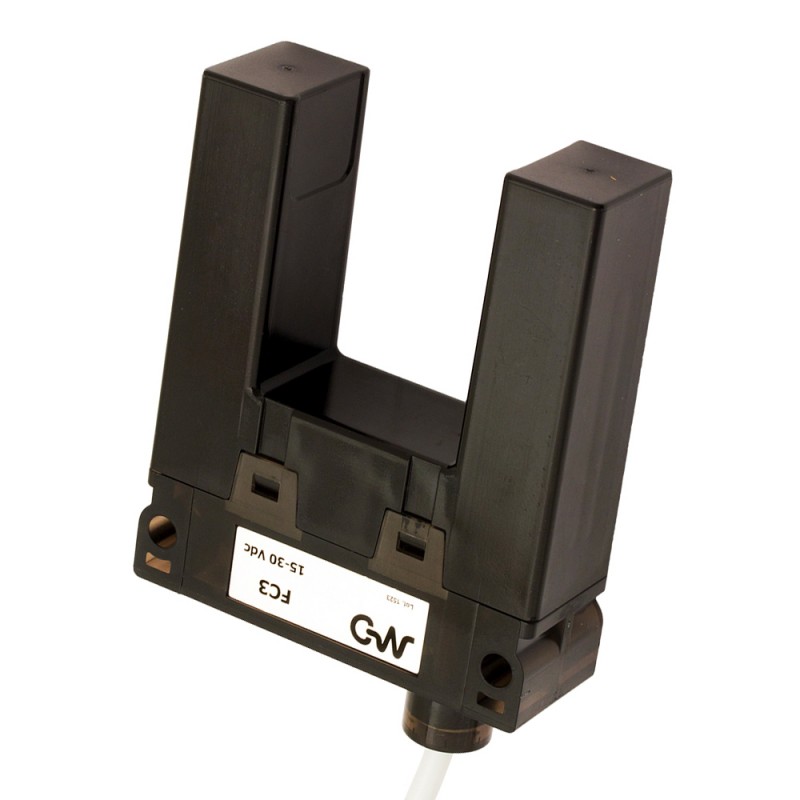

MICRO DETECTORS FC3/A FC3/A - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

FC3/A MICRO DETECTORS Slot sensor 2 beams 14-30Vdc out mosfet 24V Ac/Dc

Reference: FC3/A

Manufacturer: MICRO DETECTORS

Description:

Slot sensor 2 beams 14-30Vdc out mosfet 24V Ac/Dc
FC3/A slot sensor 2 beams 14-30Vdc out mosfet 24V Ac/Dc

Categories:

  • MICRO DETECTORS > Encoders

Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS

  • More Info
  • Reviews
Guarantee, repair and return.

Unit Price: 195,51 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 4-6 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Technical features

Beams space6,8mm
Optics diameter3mm

Outputs

Output typeMOSFET
Output FunctionLO/DO
Switching frequency25Hz

Electrical data

Operating Voltage10 … 30Vdc
No-Load supply current≤ 30mA
Load current≤ 500mA (V=30Vdc/24Vac))
Leakage current≤ 250µA (V=30V max))
Output voltage drop≤ 1,2V @ Iload=500mA
Max ripple content< 10%
LED indicatorsgreen (supply)red (output)
Emissioninfrared
Inrush current5A (T=10µs)
Blocking voltage / Operating voltage± 40/30Vdc - 30Vac eff.

Mechanical data

Dimensions26,4 x 75 x 90 mm
Weight122g
Housing MaterialPCB
ConnectionsPigtail

Test/Approvals

ApprovalsCE
Degree of protectionIP64

Electrical diagrams of the connections


Dimension (mm)
