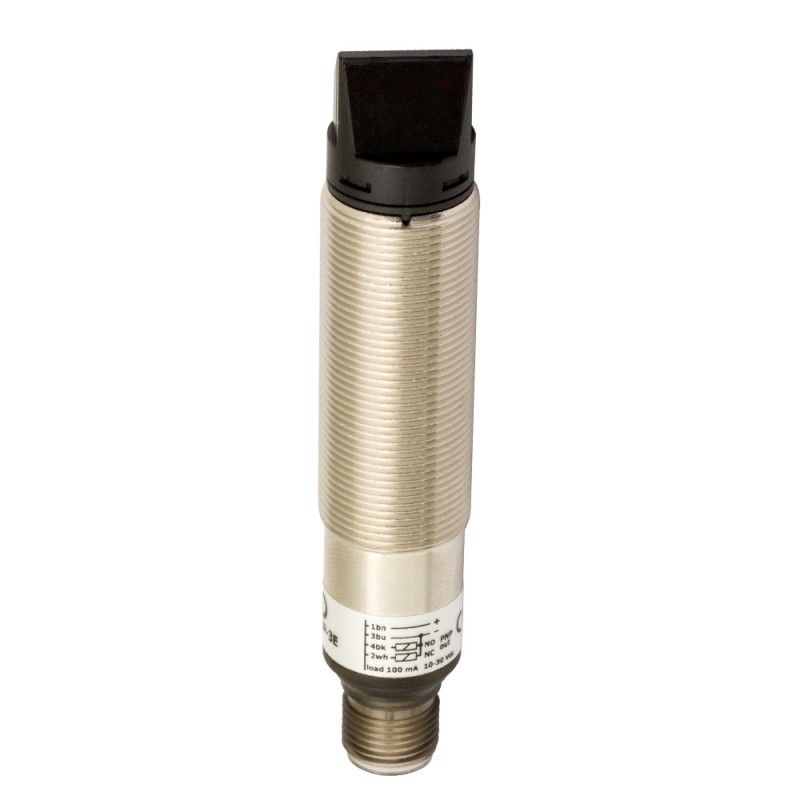

FAR3/BN-3E MICRO DETECTORS Photoelectric sensor 90° diffuse 100 mm, with adjustment, NPN NO+NC metallic plug..
FAR3/BN-3E
MICRO DETECTORS
Photoelectric sensor 90° diffuse 100 mm, with adjustment, NPN NO+NC metallic plug M12
FAR3/BN-3E Photoelectric sensor 90° Diffuse 100 mm reg NPN NO+NC metal. conn. M12
Encoders
Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
Best sellers
▲More info
▲Technical details
Discovery properties
| Nominal range | 100mm object white 90% Kodak 100x100mm | |
| Thermal drift | ≤10% Sr | |
| Repeatability | 5% | |
| Sensitivity adjustment | Potentiometer | |
Applications
| Principle of operation | Direct reflection | |
| Position lens | Radial (90°) | |
Outputs
| Output type | NPN | |
| Exit function | NA+NC | |
| Switching frequency | 250Hz | |
Electrical data
| Supply voltage | 10-30Vdc | |
| Absorption of current in the vacuum | ≤30mA | |
| Load current | ≤100mA | |
| Leakage current | ≤10µA | |
| Voltage drop to the output | 2V max. IL =100 mA | |
| Maximum residual ripple | 10% | |
| LED indicators | Yellow (state of output) | |
| Delay to the availability | ≤200ms | |
| Protection short circuit | short circuit (auto reset), overvoltage | |
| Protection polarity reversal | polarity reversal, impulse surge | |
| Emission | Red light (660 nm) | |
| Immunity to ambient light | 3000lux (incandescent lamp), 10000lux (sunlight) | |
Mechanical data
| Dimensions | M18 x 1/L=92,7 mm | |
| Weight | 100g | |
| body material | PBT | |
| Connections | Connector M12 4 pins | |
| Material of the active surface | PC | |
| Tightening torque | 25Nm | |
| Operating temperature | - 25°C...+ 70° C (without condensation) | |
Test/Certifications
| Certifications | CE, cULus | |
| Electromagnetic compatibility | According to en 60947-5-2 | |
| Shock and vibration | Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 | |
| Degree of protection | IP67 | |
Accessories
| Accessories included | 1 x nut M18, screwdriver | |
Electrical wiring diagram of the connections
Connector
Dimension (mm)
Datasheet - PDF
