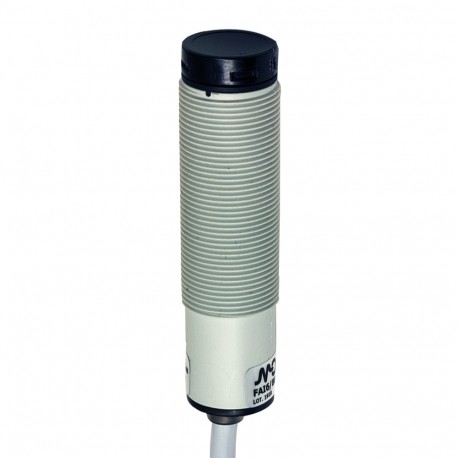

FAR2/BP-0A MICRO DETECTORS Photoelectric sensor Axial diffuse 100 mm PNP NO+NC plastic cable 2m axial
FAR2/BP-0A
MICRO DETECTORS
Photoelectric sensor Axial diffuse 100 mm PNP NO+NC plastic cable 2m axial
FAR2/BP-0A Photoelectric sensor Axial Diffuse 100 mm PNP NO+NC plast. cable 2m axial
Encoders
Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
Best sellers
▲More info
▲Technical features
| Nominal sensing distance | 100mm su ostacolo bianco 90% Kodak 100x100mm | |
| Thermal drift of Sr | 10% Sr | |
| Repeat Accuracy | 5% | |
| Sensitivity adjustment | No | |
Application
| Function Principle | Barriera, Riflessione Diretta, Reflex. Soppressione dello Sfondo | |
| Optic position | Axial | |
Outputs
| Output type | PNP | |
| Output Function | NO+NC | |
| Switching frequency | 250Hz | |
Electrical data
| Operating Voltage | 10-30Vdc | |
| No-Load supply current | 30mA | |
| Load current | 100mA | |
| Leakage current | 10μA | |
| Output voltage drop | 2V max. IL =100 mA | |
| Max ripple content | ≤ 10% | |
| LED indicators | Giallo (Stato luce) o (stato dell'uscita nelle versioni speciali LO/DO) | |
| Time delay before availability | 200ms | |
| Short-circuit protection | Corto circuito (autoripristinante) | |
| Reverse Polarity Protection | Inversione polarità, sovratensioni impulsive | |
| Emission | Led Rosso (660 nm) | |
| Interference to external light | 3000lux (lampada incandescente), 10000lux (luce solare) | |
Mechanical data
| Dimensions | M18 x 1 / L = 67,5mm | |
| Weight | 100g | |
| Housing Material | PBT | |
| Connections | Cavo 2m PVC | |
| Active Head Material | PC | |
| Tightening torque | 1Nm | |
| Operating temperature | - 25°C…+ 70° C (senza condensa) | |
| Material | housing PBT; passacavo PC; lente | |
Test/Approvals
| Approvals | CE, cULus | |
| EMC compatibility | EN 60947-5-2 | |
| Shocks and vibrations | Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 | |
| Degree of protection | IP67 | |
Accessories
| Supplied Accessories | nuts M18 x 1 | |
Electrical diagrams of the connections
Dimension (mm)
Response curves
Dimensione Spot
Disassamento Parallelo
