FAL4/0N-3E
MICRO DETECTORS
1

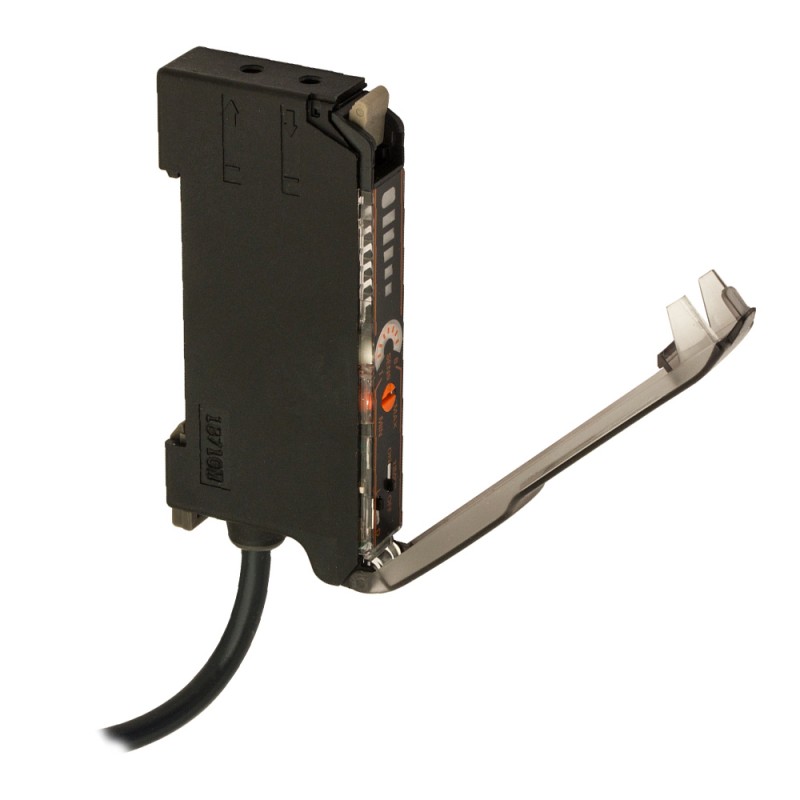

Photoelectric sensor 90° laser diffuse 200 mm, adjustment NPN metallic plug M12
FAL4/0N-3E Photoelectric sensor 90° laser Diffuse 200 mm adj. NPN L/Dselez. met. conn. M12
Encoders
* Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Nominal sensing distance | Depending on fibre used | |
Repeat Accuracy | 5% | |
Sensitivity adjustment | 8 turn trimmer |
Output type | NPN | |
Output Function | LO / DO selectable | |
Switching frequency | Standard | |
Response time | 200 µs max |
Operating Voltage | 12….24 Vdc | |
No-Load supply current | < 35 mA | |
Load current | 50 mA max | |
Leakage current | < 10 µA | |
Output voltage drop | 1 V max | |
Max ripple content | ≤ 10 % | |
LED indicators | Orange (output active); green (n.4 - received signal level); red (no received signal) | |
Time delay before availability | ≤ 200 ms | |
Short-circuit protection | Yes | |
Reverse Polarity Protection | Yes | |
Emission | Red (680 nm) | |
Interference to external light | 10.000lux (incandescent lamp), 20.000lux (sunlight) |
Dimensions | 10x31.5x64.3 mm | |
Weight | 70 g (approx.) | |
Housing Material | PBT (housing); PC (cover) | |
Connections | 2 m PVC cable | |
Operating temperature | - 25°C…+ 55°C (without freeze) | |
Storage temperature | - 30°C…+ 70°C (without freeze) |
Approvals | CE | |
EMC compatibility | EN 60947-5-2 | |
Degree of protection | IP50 (EN60529) |
Title: | Size: | Type: |
---|---|---|
PDF CATALOGUE MICRODETECTORS EN.pdf | 4 Mbytes | |
Download general catalog |
