FAI9/BN-3E
MICRO DETECTORS
1

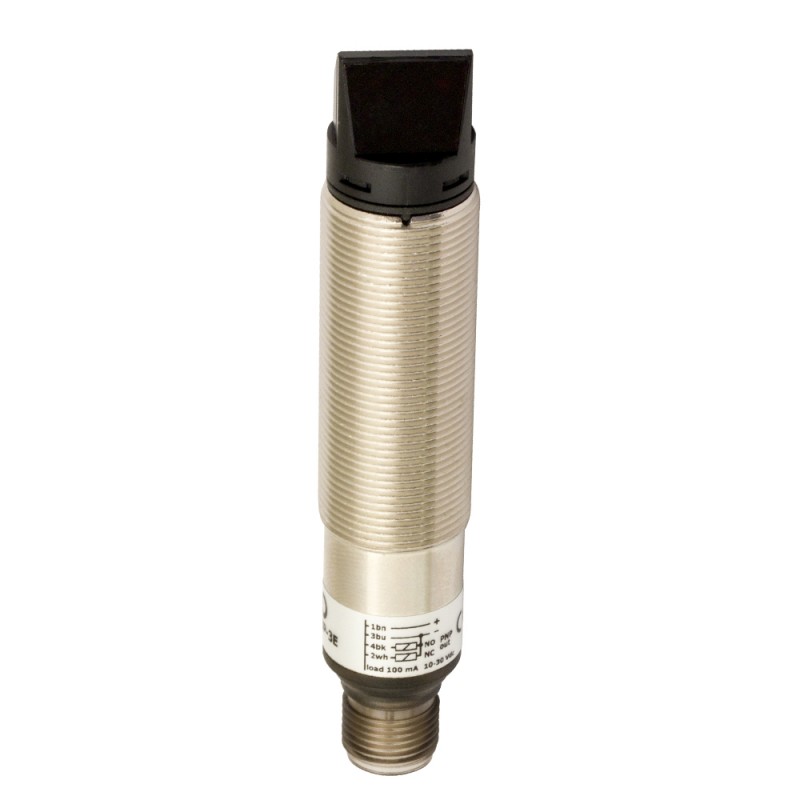

Photoelectric sensor 90° diffuse 800 mm NPN NO+NC metallic plug M12
FAI9/BN-3E Photoelectric sensor 90° Diffuse 800 mm NPN NO+NC metal. conn. M12
Encoders
* Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Nominal sensing distance | 800mm white target 90% Kodak 400x400mm | |
Thermal drift of Sr | ≤10% Sr | |
Repeat Accuracy | 5% | |
Sensitivity adjustment | No |
Function Principle | Diffuse reflection | |
Optic position | Right angle (90°) |
Output type | NPN | |
Output Function | NO+NC | |
Switching frequency | 250Hz |
Operating Voltage | 10-30Vdc | |
No-Load supply current | ≤30mA | |
Load current | ≤100mA | |
Leakage current | ≤10μA | |
Output voltage drop | 2V max. IL =100 mA | |
Max ripple content | 10% | |
LED indicators | Yellow (Lon) or output status Lo/Do | |
Time delay before availability | ≤200ms | |
Short-circuit protection | Short circuit (autoreset), Overvoltage | |
Reverse Polarity Protection | Polarity inversal, Inpulsive voltage | |
Emission | Infrared (880 nm) | |
Interference to external light | 3000lux (incandescent lamp), 10000lux (sunlight) |
Dimensions | M18 x 1/L=92,7mm | |
Weight | 100g | |
Housing Material | Nickel plated brass | |
Connections | M12 4pin Plug | |
Active Head Material | PC | |
Tightening torque | 25Nm | |
Operating temperature | - 25°C…+ 70° C (Without freeze) |
Approvals | CE, cULus | |
EMC compatibility | EN 60947-5-2 | |
Shocks and vibrations | Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 | |
Degree of protection | IP67 |
Supplied Accessories | nuts M18 x 1 |
Title: | Size: | Type: |
---|---|---|
PDF CATALOGUE MICRODETECTORS EN.pdf | 4 Mbytes | |
Download general catalog |
