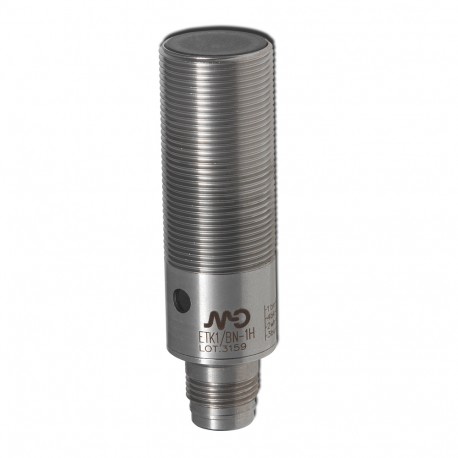

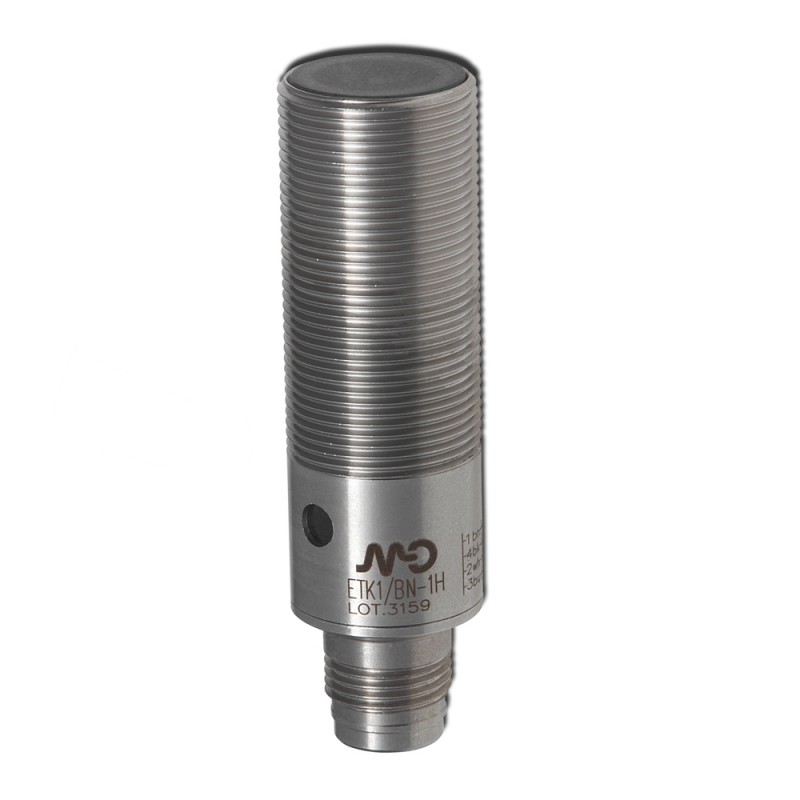

ETK1/BP-1H MICRO DETECTORS Inductive sensor M18 shielded PNP plug M12 stainless Steel
Reference: ETK1/BP-1H
Manufacturer: MICRO DETECTORS
Description:
Inductive sensor M18 shielded PNP plug M12 stainless Steel
Categories:
- MICRO DETECTORS > Sensors
Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
- More Info
- Reviews
* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
LAST VIEWED
MORE INFO
Technical features
| Nominal sensing distance | 5mm | |
| Operanting distance | 0…4mm | |
| Standard target | 18x18mm FE360 | |
| Correction Factor | copper: 0,20 ± 10% / aluminium: 0,30 ± 10% / brass: 0,40 ± 10% / stainless steel: 0,70 ± 10% | |
| Thermal drift of Sr | < 10% | |
| Repeat Accuracy | 5% (UB 24V Ta=23°C ±5°C) | |
| Hysteresis | 1 … 20% | |
Outputs
| Output type | PNP | |
| Output Function | NO + NC | |
| Switching frequency | 1,2kHz | |
Electrical data
| Operating Voltage | 10 - 30Vdc | |
| No-Load supply current | ≤ 20mA | |
| Load current | ≤ 150mA | |
| Leakage current | ≤ 10μA | |
| Output voltage drop | ≤ 1,5V @150mA | |
| Max ripple content | ≤10% | |
| LED indicators | No | |
| Time delay before availability | 100ms | |
| Short-circuit protection | Yes | |
| Reverse Polarity Protection | Yes | |
| Protection against inductive loads | Yes | |
Mechanical data
| Dimensions | M18 x 1 / L =63mm | |
| Mounting | Shielded | |
| Weight | 55g | |
| Housing Material | stainless steel AISI303 | |
| Connections | M12 Plug | |
| Active Head Material | PSU | |
| Tightening torque | 50Nm | |
| Operating temperature | -25°C…+110°C | |
Test/Approvals
| Approvals | CE | |
| EMC compatibility | IEC 60947-5-2 | |
| Shocks and vibrations | Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 | |
| Degree of protection | IP 67 (EN60529) | |
Accessories
| Supplied Accessories | 2 nuts M18x1 | |
Electrical diagrams of the connections
Connector
Dimension (mm)
Installation
Response curves
Disassamento Parallelo
DATASHEET - PDF
