DMP/0P-1A
MICRO DETECTORS
1

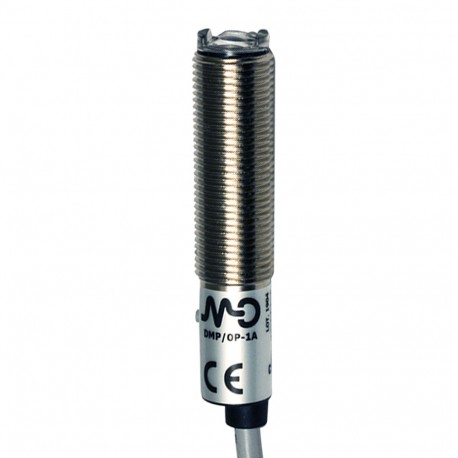

Photoelectric sensor 2 m polarised PNP with adjustment, cable 2m axial
DMP/0P-1A Photoelectric sensor 2 m Polar. PNP with adj. cable 2m axial
Encoders
* Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Nominal sensing distance | 2.500mm | |
Thermal drift of Sr | ≤10% Sr | |
Repeat Accuracy | 5% | |
Sensitivity adjustment | Yes |
Function Principle | Polarized | |
Notes | With RL110 reflector | |
Optic position | Axial |
Output type | PNP | |
Output Function | LO/DO selectable | |
Switching frequency | 400Hz |
Operating Voltage | 10…30Vdc | |
No-Load supply current | ≤30mA | |
Load current | ≤100mA | |
Leakage current | ≤10μA | |
Output voltage drop | ≤2V IL =100 mA | |
Max ripple content | ≤ 10% | |
LED indicators | Yellow | |
Time delay before availability | ≤150ms | |
Short-circuit protection | Yes | |
Reverse Polarity Protection | Yes | |
Emission | Red (660nm) | |
Interference to external light | 3.000lux (incandescent lamp), 10.000lux (sunlight) | |
Impulsive Overvoltage Protection | Yes |
Dimensions | M12x1/L=55,3mm | |
Weight | 60g | |
Housing Material | Nickel-plated brass | |
Connections | Cable 2m PVC | |
Active Head Material | PMMA | |
Operating temperature | - 25°C…+ 70° C |
Approvals | CE, Ex, C UL US | |
EMC compatibility | EN 60947-5-2 | |
Shocks and vibrations | Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 | |
Degree of protection | IP67 |
Supplied Accessories | Metallic nut (x2) |
Title: | Size: | Type: |
---|---|---|
PDF CATALOGUE MICRODETECTORS EN.pdf | 4 Mbytes | |
Download general catalog |
