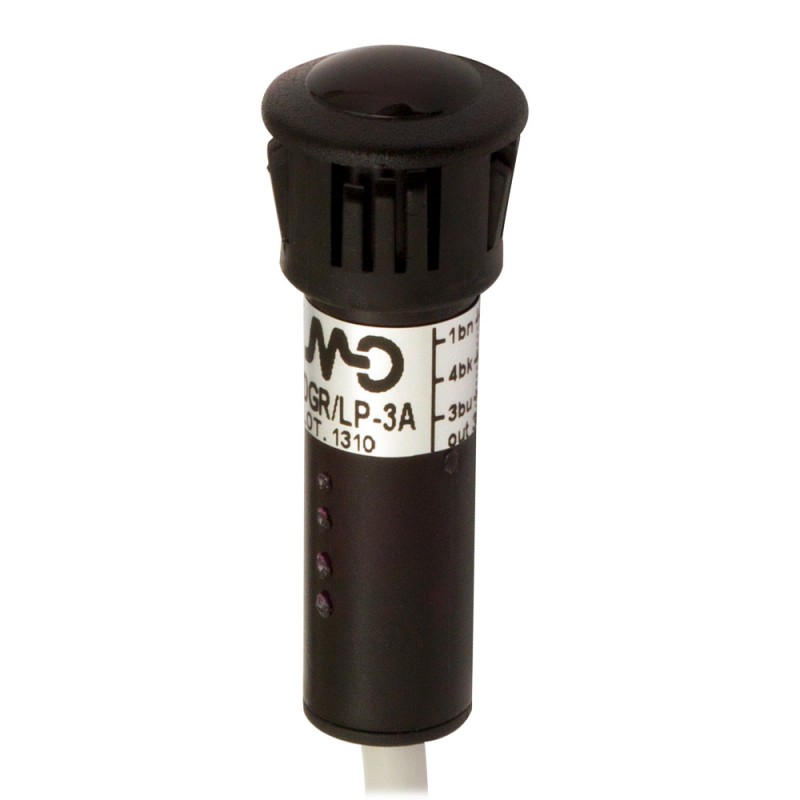

DGR/LP-3A MICRO DETECTORS Photoelectric sensor Receiver PNP-LOn, D10mm clip cable 5 m
DGR/LP-3A
MICRO DETECTORS
Photoelectric sensor Receiver PNP-LOn, D10mm clip cable 5 m
Encoders
* Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
More info
▲Technical features
| Nominal sensing distance | 2m (EG=4) | |
| Thermal drift of Sr | ≤10%Sr | |
| Sensitivity adjustment | No | |
Application
| Function Principle | Through-beam | |
| Emitter/Receiver | Receiver | |
| Optic position | Axial | |
Outputs
| Output type | PNP | |
| Output Function | LO | |
| Switching frequency | 40Hz | |
Electrical data
| Operating Voltage | 15…37Vdc | |
| No-Load supply current | ≤10mA | |
| Load current | ≤30mA | |
| Leakage current | ≤10µA | |
| Output voltage drop | ≤2V IL=30mA | |
| Max ripple content | ≤ 10% | |
| LED indicators | Supply | |
| Time delay before availability | ≤ 100ms | |
| Short-circuit protection | Yes | |
| Reverse Polarity Protection | Yes | |
| Interference to external light | 20.000lux | |
| Impulsive Overvoltage Protection | Yes | |
Mechanical data
| Dimensions | M10x1/L=41mm | |
| Weight | 210g | |
| Housing Material | PC | |
| Connections | Cable 5m PVC | |
| Active Head Material | PMMA | |
| Operating temperature | - 25°C…+ 70° C (without freeze) | |
Test/Approvals
| Approvals | CE | |
| EMC compatibility | EN 60947-5-3 | |
| Shocks and vibrations | Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 | |
| Degree of protection | IP67 | |
Electrical diagrams of the connections
Dimension (mm)
Response curves
Dimensione Spot
Disassamento Parallelo
Eccesso di Guadagno
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE MICRODETECTORS EN.pdf | 4 Mbytes |
|
| Download general catalog |
|
