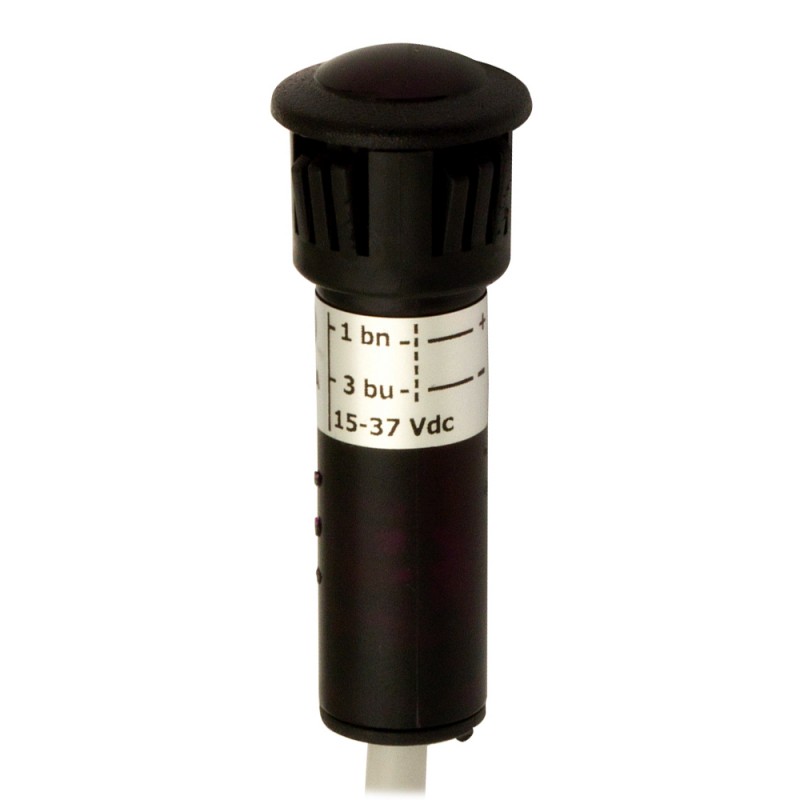

MICRO DETECTORS DGR/DP-3D DGR/DP-3D - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

DGR/DP-3D MICRO DETECTORS Photoelectric sensor Receiver PNP-DOn D10mm clip cable 7 m

Reference: DGR/DP-3D

Manufacturer: MICRO DETECTORS

Description:

Photoelectric sensor Receiver PNP-DOn D10mm clip cable 7 m
DGR/DP-3D Photoelectric sensor Receiver PNP Don D10mm clip cable 7 m

Categories:

  • MICRO DETECTORS > Encoders

Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS

  • More Info
  • Reviews
Guarantee, repair and return.

Unit Price: 51,48 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 4-6 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Technical features

Nominal sensing distance2m (EG=4)
Thermal drift of Sr≤10%Sr
Sensitivity adjustmentNo

Application

Function PrincipleThrough-beam
Emitter/ReceiverReceiver
Optic positionAxial

Outputs

Output typePNP
Output FunctionDO
Switching frequency40Hz

Electrical data

Operating Voltage15…37Vdc
No-Load supply current≤10mA
Load current≤30mA
Leakage current≤10µA
Output voltage drop≤2V IL=30mA
Max ripple content≤ 10%
LED indicatorsSupply
Time delay before availability≤ 100ms
Short-circuit protectionYes
Reverse Polarity ProtectionYes
Interference to external light20.000lux
Impulsive Overvoltage ProtectionYes

Mechanical data

DimensionsM10x1/L=41mm
Weight210g
Housing MaterialPC
ConnectionsCable 7m PVC
Active Head MaterialPMMA
Operating temperature- 25°C…+ 70° C (without freeze)

Test/Approvals

ApprovalsCE
EMC compatibilityEN 60947-5-3
Shocks and vibrationsVibration IEC 60068-2-6 / Shock IEC 60068-2-27
Degree of protectionIP67

Electrical diagrams of the connections


Dimension (mm)



Response curves

Dimensione Spot


Disassamento Parallelo


Eccesso di Guadagno
