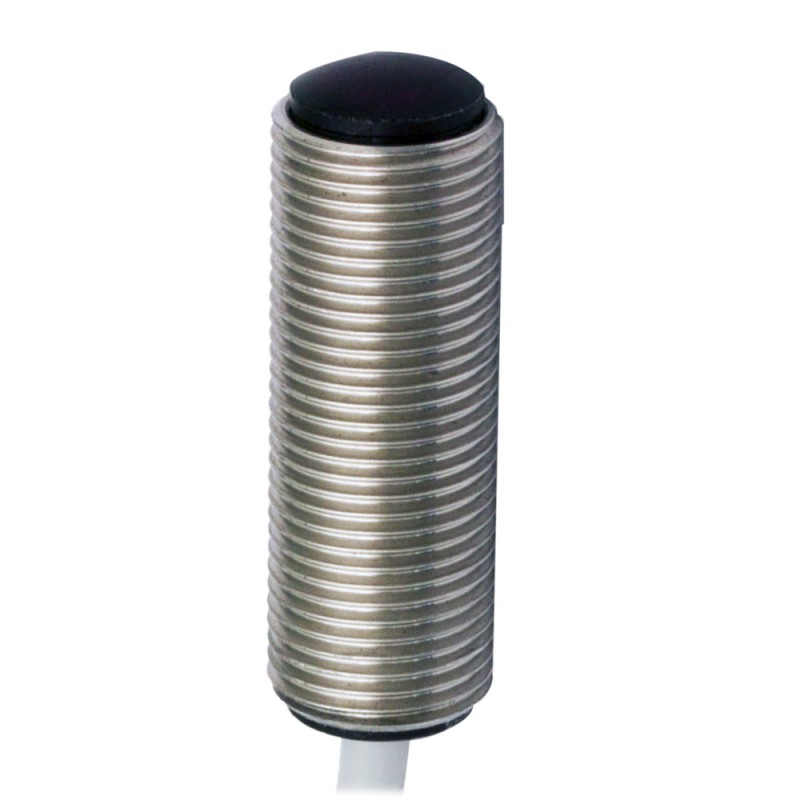

DGR/02-0B MICRO DETECTORS Photoelectric sensor Receiver 32mm D.10 mm L36 mm plastic 10 m
DGR/02-0B
MICRO DETECTORS
Photoelectric sensor Receiver 32mm D.10 mm L36 mm plastic 10 m
DGR/02-0B Photoelectric sensor Receiver 32mD.10 mm L36 mm plast. 10 m
Encoders
Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
Best sellers
▲More info
▲Technical features
| Nominal sensing distance | 32m | |
| Beam angle | ± 10° | |
Application
| Function Principle | Through-beam | |
Electrical data
| Operating Voltage | from UR control unit | |
| Emission | Infrared | |
| Interference to external light | 20000 lux | |
Mechanical data
| Dimensions | Ø 10mm x 36mm | |
| Housing Material | Polycarbonate | |
| Connections | Cable 10m | |
| Active Head Material | Polycarbonate | |
| Operating temperature | -20°C … +60°C | |
Test/Approvals
| Approvals | CE | |
| EMC compatibility | Conforming with EMC directive according with EN60947-5-2 | |
| Degree of protection | IP67 | |
Electrical diagrams of the connections
Dimension (mm)
Response curves
Dimensione Spot
Disassamento Parallelo
Eccesso di Guadagno
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE MICRODETECTORS EN.pdf | 79 Mbytes |
|
| Download general catalog |
|
