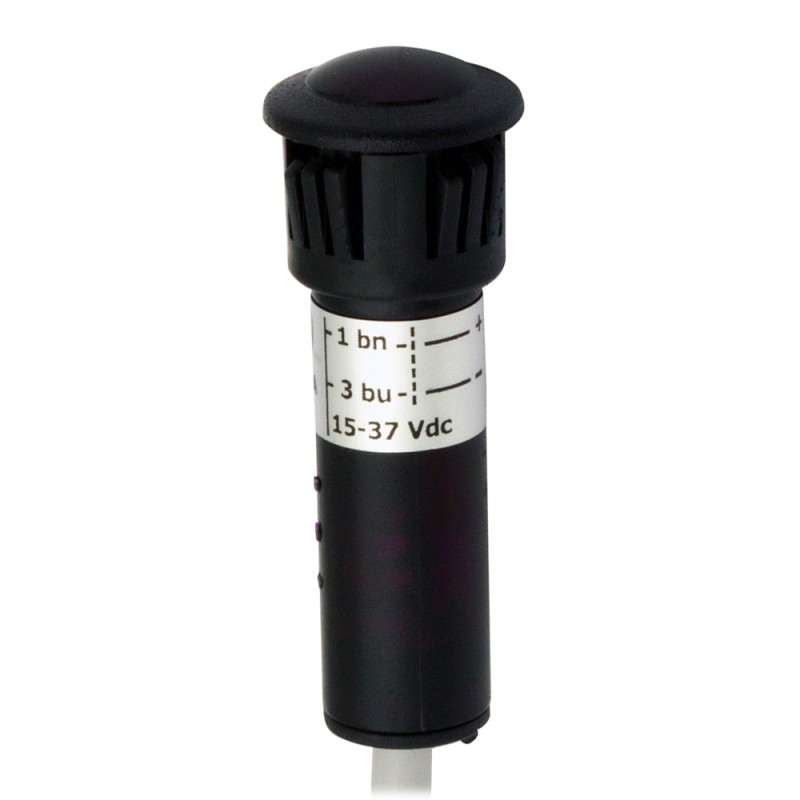

MICRO DETECTORS DGE/11-3A DGE/11-3A - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

DGE/11-3A MICRO DETECTORS Photoelectric sensor Emitter D10mm clip cable 5 m

Reference: DGE/11-3A

Manufacturer: MICRO DETECTORS

Description:

Photoelectric sensor Emitter D10mm clip cable 5 m
DGE/11-3A Photoelectric sensor Emitt.ampl. D10mm clip cable 5 m

Categories:

  • MICRO DETECTORS > Encoders

Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS

  • More Info
  • Reviews
Guarantee, repair and return.

Unit Price: 36,44 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 4-6 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Technical features

Nominal sensing distance2m (EG=4)
Thermal drift of Sr≤10%Sr
Sensitivity adjustmentNo

Application

Function PrincipleThrough-beam
Emitter/ReceiverEmitter
Optic positionAxial

Electrical data

Operating Voltage15…37Vdc
No-Load supply current≤10mA
Max ripple content≤ 10%
LED indicatorsSupply
Short-circuit protectionYes
Reverse Polarity ProtectionYes
EmissionInfrared (880nm)
Impulsive Overvoltage ProtectionYes

Mechanical data

DimensionsM10x1/L=41mm
Weight210g
Housing MaterialPC
ConnectionsCable 5m PVC
Active Head MaterialPMMA
Operating temperature- 25°C…+ 70° C (without freeze)

Test/Approvals

ApprovalsCE
EMC compatibilityEN 60947-5-3
Shocks and vibrationsVibration IEC 60068-2-6 / Shock IEC 60068-2-27
Degree of protectionIP67

Electrical diagrams of the connections


Dimension (mm)



Response curves

Dimensione Spot


Disassamento Parallelo


Eccesso di Guadagno
