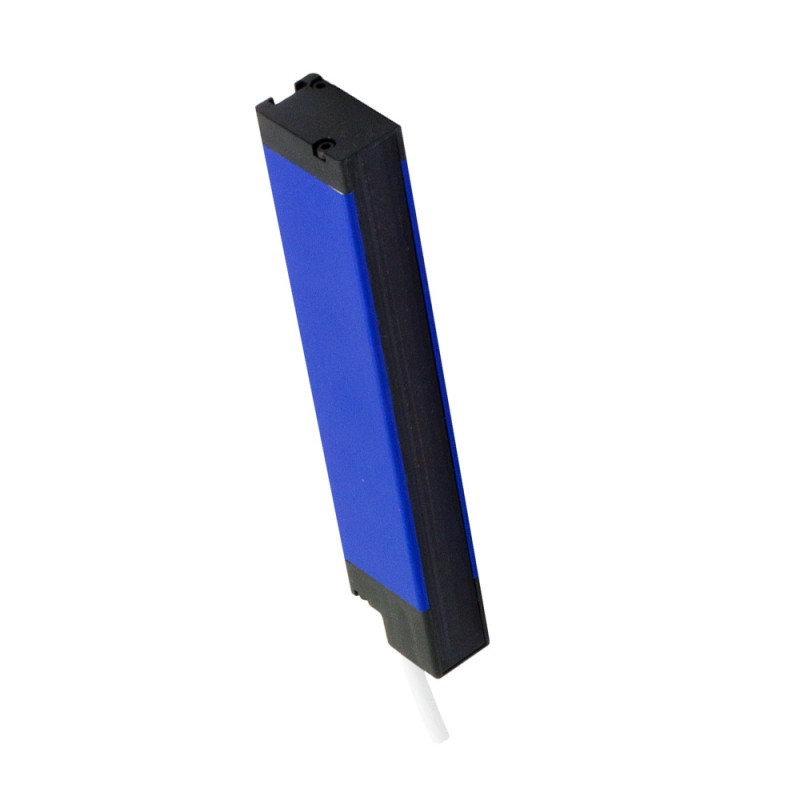

CX2E0RF/20-016V MICRO DETECTORS Area sensor, Synchronization by cable, P: 10mm, H: 160mm, Sensing distance 6..

Reference: CX2E0RF/20-016V

Manufacturer: MICRO DETECTORS

Description:

Area sensor, Synchronization by cable, P: 10mm, H: 160mm, Sensing distance 6m, Teach G/F, Blanking, parallel beams
CX2E0RF/20-016V Area sensor One cable sync., P: 20mm , H: 160mm, Sn 6m, Teach G/F, Blanking, parallel beams

Categories:

  • MICRO DETECTORS > Encoders

Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS

  • More Info
  • Reviews
Guarantee, repair and return.

Unit Price: 489,90 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 4-6 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Technical details

Discovery properties

Nominal range0,3 ... 6 m
Distance between beams20mm
Protected height160mm
Object minimum detectable20mm
Number of beamsNine
Sensitivity adjustmentCable autotuning

Applications

Principle of operationtransmitter/receiver

Outputs

Output typedigital output PNP + analog output (0-10V)
Exit functionNA + ramp positive
Switching frequency[(0.2 x no. elements - 1) + 1] x 2ms

Electrical data

Supply voltage16,8...30vdc
Absorption of current in the vacuum≤330ma
Load current< 100mA
Leakage current≤ 10µA
Voltage drop to the output< 1.5 V @ 100mA
Maximum residual ripple< 1,2 Vpp
LED indicatorsred and yellow (emitter) - green, red, and yellow (receiver)
Delay to the availability< 3s
Protection short circuitYes
Protection polarity reversalYes
Emissioninfrared
Immunity to ambient lightIEC EN 60947-5-2
Protection against impulse overvoltageYes

Mechanical data

Dimensions20mm x 169mm x 35mm
Weight450g
body materialaluminum painted RAL5002
Connections1xM12, 4 poly, maschio (CX2E); 1xM12, 8 poly, maschio (CX2R)
Material of the active surfacePMMA
Operating temperature- 10°C...+ 55° C (without freezing)
Storage temperature- 25°C...+ 60° C (no freezing)

Test/Certifications

CertificationsCEcULus
Electromagnetic compatibilityIEC 60947-5-2
Shock and vibrationIEC EN 60947-5-2
Degree of protectionIP67

Accessories

Accessories includedST151 fixing kit

Electrical wiring diagram of the connections


Connector


Dimension (mm)
