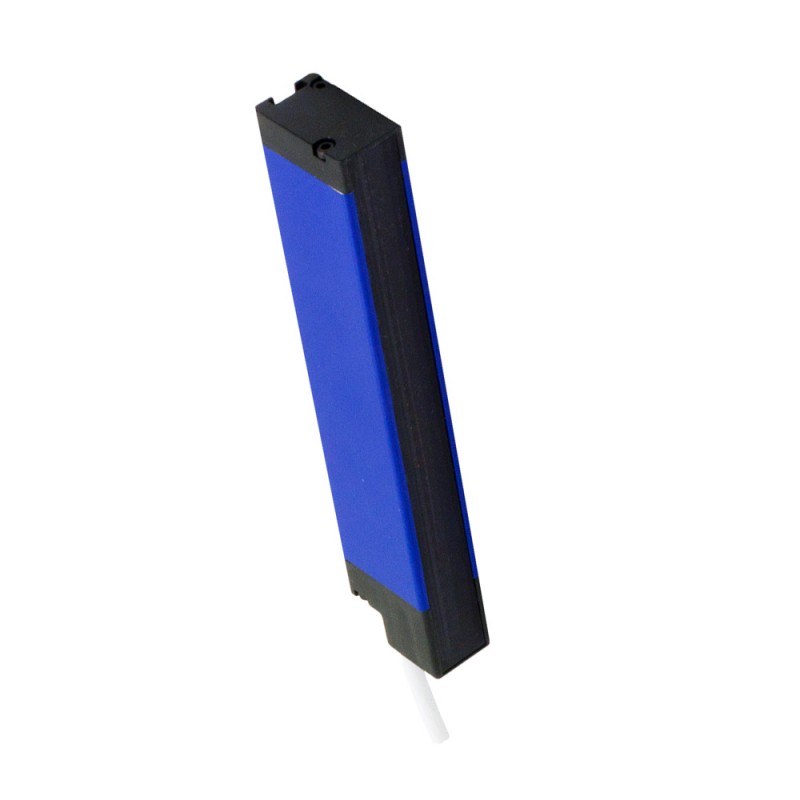

CX2E0RF/10-064V MICRO DETECTORS Area sensor, Synchronization by cable, P: 10mm, H: 640mm, Sensing distance 6..
CX2E0RF/10-064V
MICRO DETECTORS
Area sensor, Synchronization by cable, P: 10mm, H: 640mm, Sensing distance 6m, Teach G/F, Blanking, parallel beams
CX2E0RF/10-064V Area sensor One cable sync., P: 10mm , H: 640mm, Sn 6m, Teach G/F, Blanking, parallel beams
Encoders
Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
Best sellers
▲More info
▲Technical details
Discovery properties
| Nominal range | 0,3... 6 m | |
| Distance between beams | 10mm | |
| Protected height | 640mm | |
| Object minimum detectable | 10mm | |
| Number of beams | Sixty five | |
| Sensitivity adjustment | Cable autotuning | |
Applications
| Principle of operation | transmitter/receiver | |
Outputs
| Output type | digital output PNP + analog output (0-10V) | |
| Exit function | NA + ramp positive | |
| Switching frequency | [(0.2 x no. elements - 1) + 1] x 2ms | |
Electrical data
| Supply voltage | 16,8...30vdc | |
| Absorption of current in the vacuum | ≤330ma | |
| Load current | < 100mA | |
| Leakage current | ≤ 10µA | |
| Voltage drop to the output | < 1.5 V @ 100mA | |
| Maximum residual ripple | < 1,2 Vpp | |
| LED indicators | red and yellow (emitter) - green, red, and yellow (receiver) | |
| Delay to the availability | < 3s | |
| Protection short circuit | Yes | |
| Protection polarity reversal | Yes | |
| Emission | infrared | |
| Immunity to ambient light | IEC EN 60947-5-2 | |
| Protection against impulse overvoltage | Yes | |
Mechanical data
| Dimensions | 20mm x 649mm x 35mm | |
| Weight | 1500g | |
| body material | aluminum painted RAL5002 | |
| Connections | 1xM12, 4 poly, maschio (CX2E); 1xM12, 8 poly, maschio (CX2R) | |
| Material of the active surface | PMMA | |
| Operating temperature | - 10°C...+ 55° C (without freezing) | |
| Storage temperature | - 25°C...+ 60° C (no freezing) | |
Test/Certifications
| Certifications | CEcULus | |
| Electromagnetic compatibility | IEC 60947-5-2 | |
| Shock and vibration | IEC EN 60947-5-2 | |
| Degree of protection | IP67 | |
Accessories
| Accessories included | ST151 fixing kit | |
Electrical wiring diagram of the connections
Connector
Dimension (mm)
