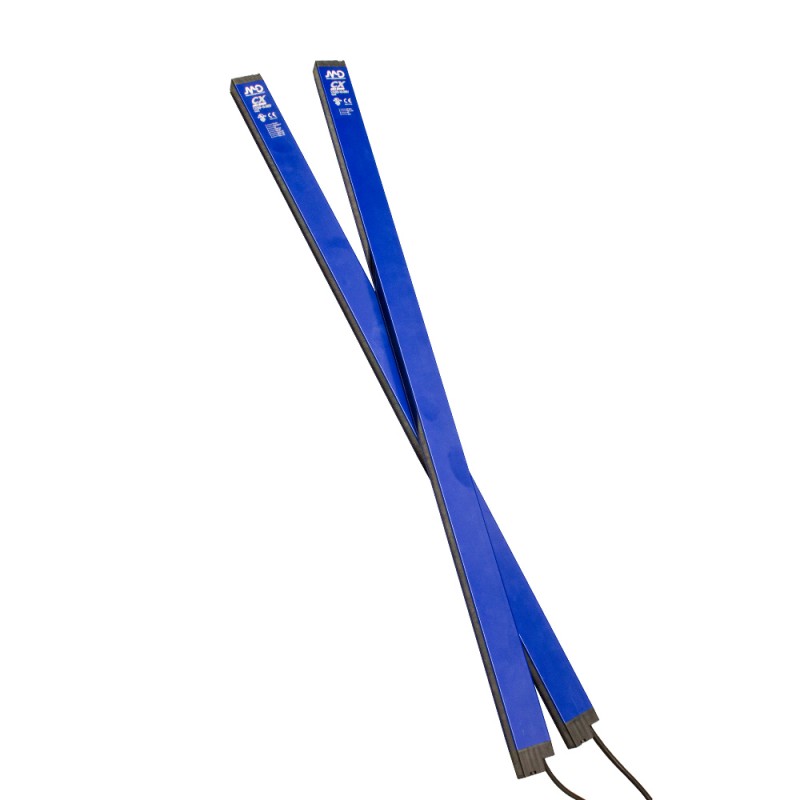

CX2E0RA/10-016V MICRO DETECTORS Area sensor, Synchronization by cable, P: 10mm, H: 160mm, Sensing distance 6..
CX2E0RA/10-016V
MICRO DETECTORS
Area sensor, Synchronization by cable, P: 10mm, H: 160mm, Sensing distance 6m, Teach G/F, Blanking, parallel beams
CX2E0RA/10-016V Area sensor One cable sync., P: 10mm , H: 160mm, Sn 6m, Teach G/F, Blanking, parallel beams
Encoders
* Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
Best sellers
▲More info
▲Technical features
| Nominal sensing distance | 0,3… 6m | |
| Beams space | 10mm | |
| controlled height | 160mm | |
| minimum detectable object | 10mm | |
| number of rays | 17 | |
| Sensitivity adjustment | Teach-in wire | |
Application
| Function Principle | emitter/receiver | |
Outputs
| Output type | 2 analog output (0-10V and 4-20mA) | |
| Output Function | positive ramp | |
| Switching frequency | [(0,2 x No.beams - 1) + 1] x 2ms | |
Electrical data
| Operating Voltage | 16,8…30Vdc | |
| No-Load supply current | ≤330ma | |
| Load current | < 100mA | |
| Leakage current | ≤ 10µA | |
| Output voltage drop | < 1,5V @ 100mA | |
| Max ripple content | < 1,2Vpp | |
| LED indicators | red and yellow (emitter) - green, red and yellow (receiver) | |
| Time delay before availability | < 3s | |
| Short-circuit protection | Yes | |
| Reverse Polarity Protection | Yes | |
| Emission | infrared | |
| Interference to external light | IEC EN 60947-5-2 | |
| Impulsive Overvoltage Protection | Yes | |
Mechanical data
| Dimensions | 20mm x 169mm x 35mm | |
| Weight | 450g | |
| Housing Material | painted aluminium RAL5002 | |
| Connections | 1xM12, 4 poli, maschio (CX2E); 1xM12, 8 poli, maschio (CX2R) | |
| Active Head Material | PMMA | |
| Operating temperature | - 10°C…+ 55° C (without freeze) | |
| Storage temperature | - 25°C…+ 60° C (without freeze) | |
Test/Approvals
| Approvals | CEcULus | |
| EMC compatibility | IEC 60947-5-2 | |
| Shocks and vibrations | IEC EN 60947-5-2 | |
| Degree of protection | IP67 | |
Accessories
| Supplied Accessories | ST151 fixing kit | |
Electrical diagrams of the connections
Connector
Dimension (mm)
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE MICRODETECTORS EN.pdf | 4 Mbytes |
|
| Download general catalog |
|
