CX0E1RP/10-016V
MICRO DETECTORS
1

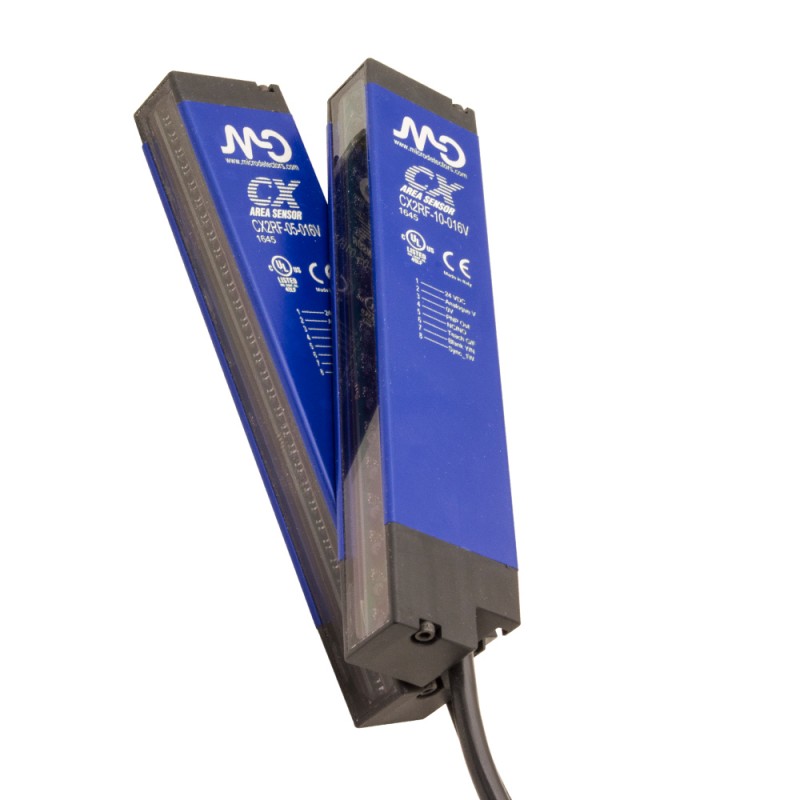

Area sensor Intrinsic optical sync., full cross optical beams, P: 10mm, H: 160mm, Sensing distance: 6m, one interconnected cable
CX0E1RP/10-016V Area sensor Intrinsic optical sync., full cross optical beams, P: 10mm, H: 160mm, Sn: 6m, one interconnected cable
Encoders
* Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Nominal sensing distance | 0,5 … 6m | |
Beams space | 10mm | |
controlled height | 160mm | |
minimum detectable object | 3mm | |
number of rays | 17 | |
Sensitivity adjustment | Teach-in wire |
Function Principle | emitter/receiver |
Output type | NO/NC | |
Output Function | PNP | |
Switching frequency | 135Hz |
Operating Voltage | 16,8…30Vdc | |
No-Load supply current | ≤330ma | |
Load current | < 100mA | |
Leakage current | ≤ 10µA | |
Output voltage drop | < 1,5V @ 100mA | |
Max ripple content | < 1,2Vpp | |
LED indicators | red and yellow (emitter) - green, red and yellow (receiver) | |
Time delay before availability | 200ms | |
Short-circuit protection | Yes | |
Reverse Polarity Protection | Yes | |
Emission | 880nm | |
Interference to external light | IEC EN 60947-5-2 | |
Impulsive Overvoltage Protection | Yes |
Dimensions | 20mm x 169mm x 35mm | |
Weight | 450g | |
Housing Material | painted aluminium RAL5002 | |
Connections | 1xM12, 4 poles, male (CX0E); 1xM12, 5 poles, male (CX0R) | |
Active Head Material | PMMA | |
Operating temperature | - 10°C…+ 55° C (without freeze) | |
Storage temperature | - 25°C…+ 60° C (without freeze) |
Approvals | CEcULus | |
EMC compatibility | IEC 60947-5-2 | |
Shocks and vibrations | IEC EN 60947-5-2 | |
Degree of protection | IP67 |
Supplied Accessories | ST151 fixing kit |
