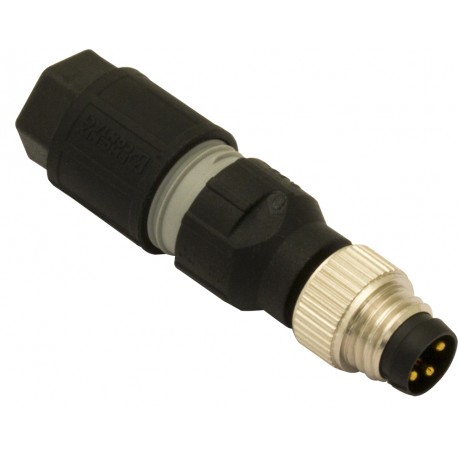

MICRO DETECTORS CV08/1B-00A CV08/1B-00A - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

CV08/1B-00A MICRO DETECTORS Connector plug M8 male 4 poles Axial a fast connection

Reference: CV08/1B-00A

Manufacturer: MICRO DETECTORS

Description:

Connector plug M8 male 4 poles Axial a fast connection
CV08/1B-00A Connector Conn. M8 male 4 poles Axial a fast connection

Categories:

  • MICRO DETECTORS > Encoders

Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS

  • More Info
  • Reviews
Guarantee, repair and return.

Unit Price: 25,44 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 6-8 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Technical features

Application

Fixingspring terminals

Electrical data

Rated currenta 40℃ 4 A
Wires4
Insulation resistance≥ 100 mΩ
Contact resistance≤ 5 mΩ
Rated voltage60 V (3 plugs) 30 V (4 plugs)

Mechanical data

Tightening torque0,6 Nm (pressure nut) 0,2 Nm (M8 nut)
Operating temperature-25 °C ... 80 °C
PlugM8
Outer diameter2,5 mm...5 mm ±0,2 mm
Head typeAxial
Stripping lenght of the sheath40 mm
AWG conductors sectionAWG 24 ... 20
Conductors section0,25 mm²...0,5 mm²
ModelMale

Test/Approvals

Degree of protectionIP65 / IP67

Dimension (mm)
